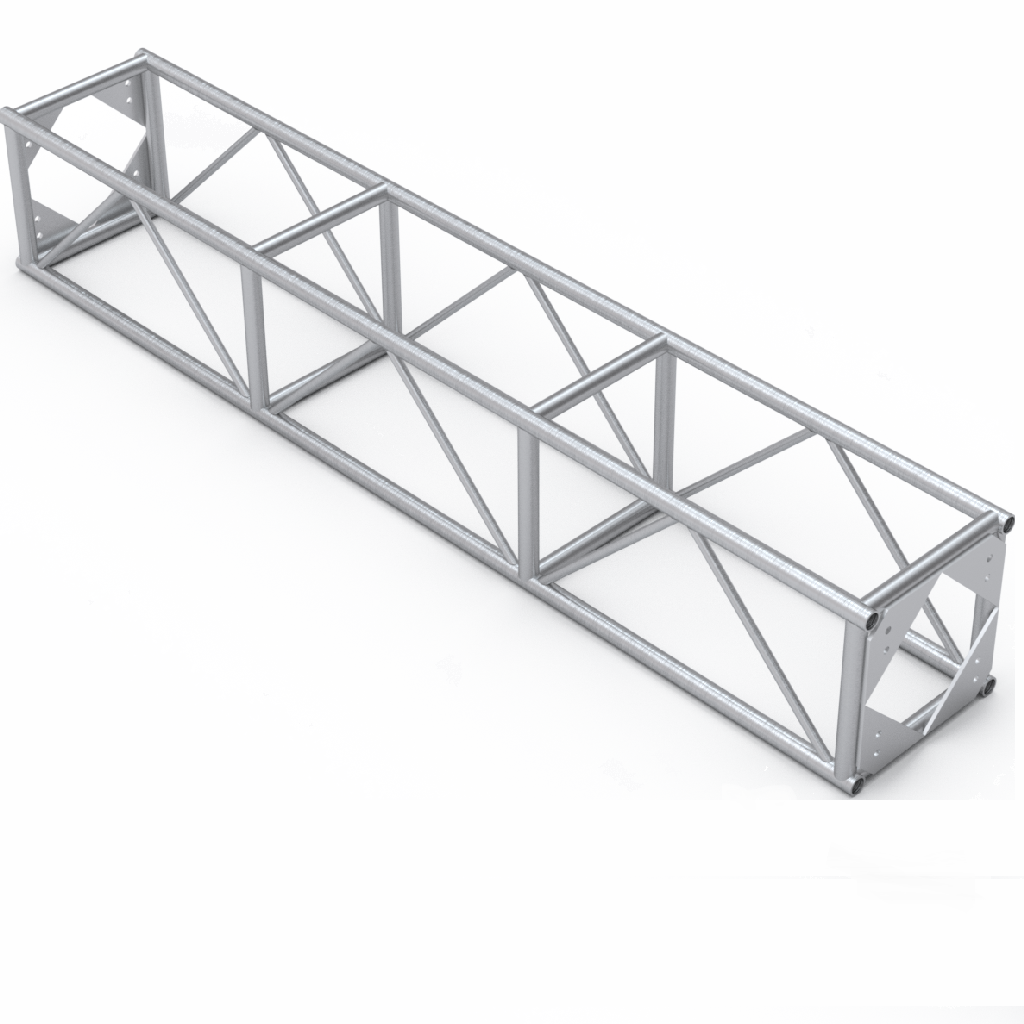

5' 20.5" BOX TRUSS ALUM.
Rental Price Regular price$50.00
/
Prices Are Subject To Change Without Notice
Generic Medium Duty is perhaps the truss that the production industry is built on. GMD has good structural properties and can achieve span lengths up to 50ft. With a 20.5” square cross section it provides a very economical truck pack and great versatility and can be used as a base for the Total Structures outdoor stage roof system.
Built on the same profile, S4-PRT is a Pre-rigged version of this truss that is physically and structurally compatible, that will house a lamp bar of fixtures (ideal for Source 4 Par lamps) that can be stored in the truss for shipping and storage, and lowered through the truss at show time.
TECHNICAL SPECIFICATIONS
- Height 20.5'' / 52,07 cmWidth20.5'' / 52,07 cm
- Connection Centers 13.78’’w x 13.78’’h
- Material 6061-T6 Aluminum
- Connection 5/8’’ Grade 8 Steel nuts & bolts
- Max. Certified Span 50ft
