20A SINGLE DMX RELAY PACK (FLEENOR)

20A SINGLE DMX RELAY PACK (FLEENOR)

Rental Price  Regular price$35.00
/
Prices Are Subject To Change Without Notice

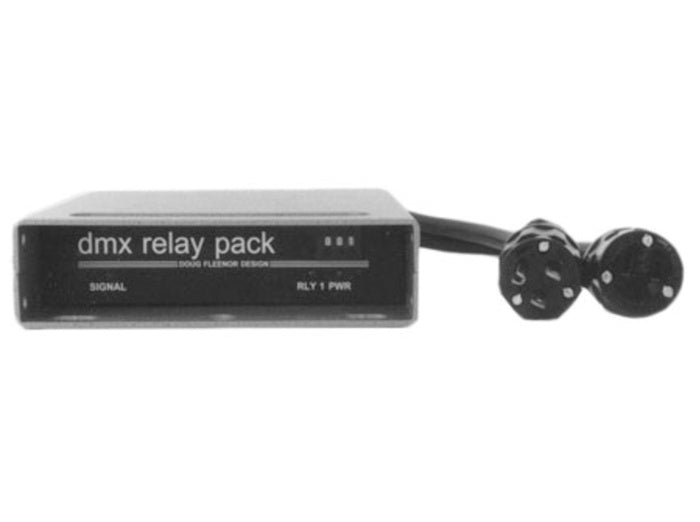

Doug Fleenor Design makes a series of Relay Packs that are controlled by DMX512. The DMX1REL20A is a single channel unit, designed to switch up to a 20 amp line voltage load, and uses a 30 amp relay. The unit is provided with two 18" 12/3 SJ pigtails for line-in and switched line-out. Supplied with 15 amp parallel blade connectors as standard, the unit may be wired with higher rating connectors by special order or may be rewired by the customer. Unit operates on 100-208V 50/60Hz, and may be optionally setup to work on 220-240V 50/60Hz.
