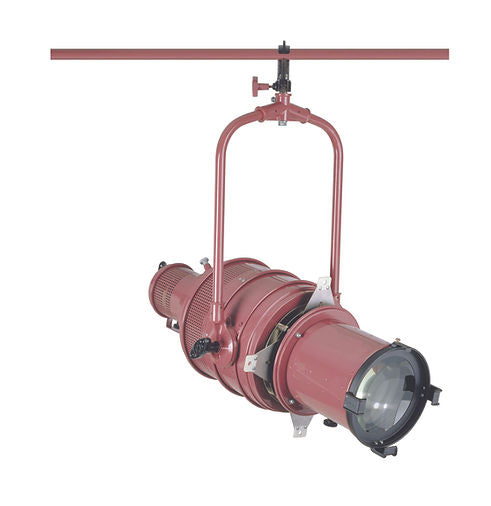

2K MOLELIPSO HEAD COMPLETE
Rental Price Regular price$135.00
/
Prices Are Subject To Change Without Notice
- Head: Type 8021, 2,000 Watts
- Rating: 120/240 volts, A.C. or D.C., 16.7 amps max.- 2,000 watts max.
- Socket: Mogal bipost, spring loaded contacts
- Switch: Standard Fixture: No switch
- Special Fixture: Thru-cord type in cable
- Cable: Standard Fixture: Three #12 extra flexible 36" K-Fiber leads.
- Special Fixture: 25 feet,Type S, 3 conductor #14 AWG with thru-cord switch
- Construction: Tempered aluminum alloy spinnings, solid and perforated sheet steel
- Yoke: Tubular aluminum and aluminum. Accepts Type 500725 1 ⅛" yoke pin assembly or Type 500353 C-Clamp Adapter (not included in cost of fixture)
- Lenses: Two alternate accessory lens assemblies with cast aluminum diffuser clips (not included in price of lamp.)
- Type 8026: 6" x 12" PC lens tube assembly having two 6" x 12" plano-convex lenses of heat resistant glass.
- Type 8028: 8" x 21" PC lens tube assembly having two 8" x 21" plano-convex lenses of heat resistant glass.
- Reflector: Modified ellipsoidal alzak aluminum
- Focusing: Easy action, plastic knob operates an adjustable lens tube
- Aperture Assembly: Consists of four adjustable framing shutters of stainless steel, with insulated handles, and guides to contain either a Dip Stick (Pattern Holder,) an Iris or Matts.
- Finish: Maroon powder coat enamel
- Size: 36 ½" x 13 ⅝" x 13 ⅝"
- Head Weights: 25 ½ lbs.
- With 6" x 12" PC Lens Assembly: 33 ¼ lbs.
- With 8" x 21" PC Lens Assembly: 34 ¾ lbs.
- Cable Weights: 36" K-Fiber leads: 6 ozs.
- 25 ft, #14 AWG, Type SO: 6 ½ lbs.
