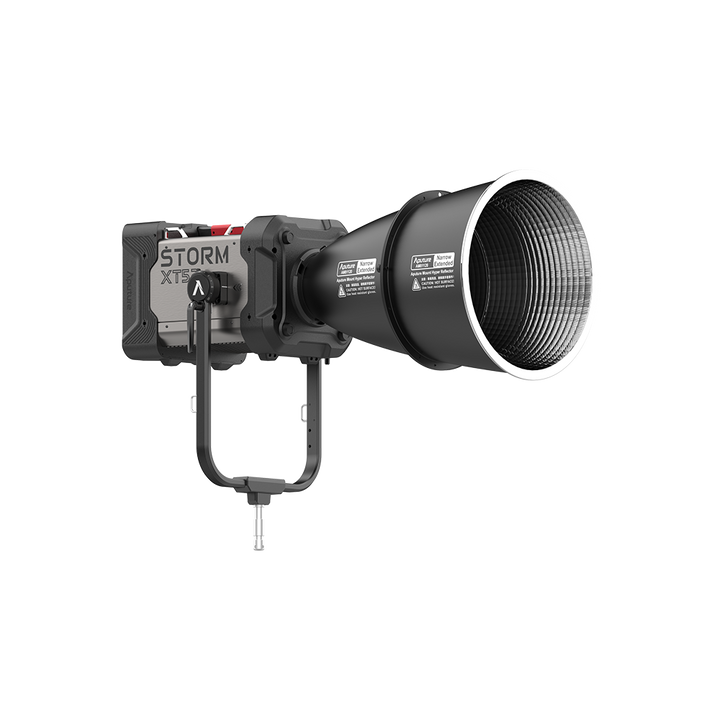

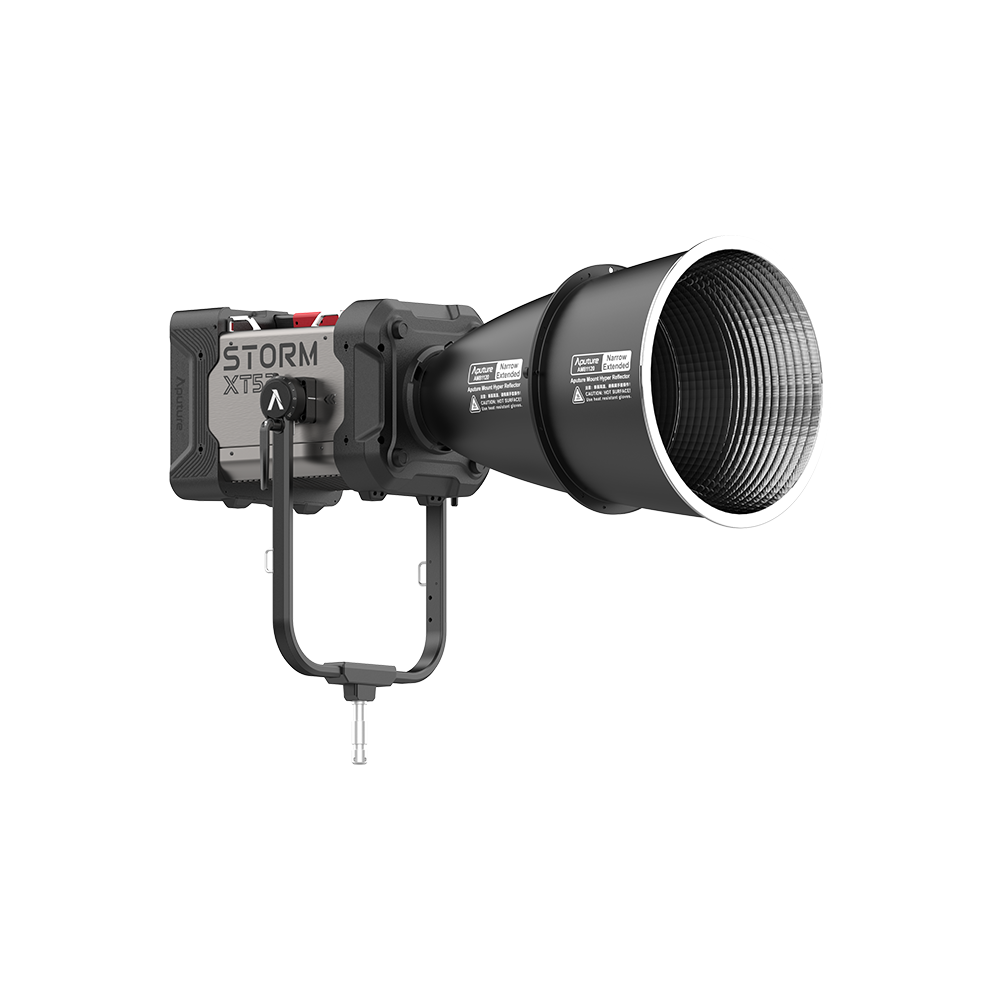

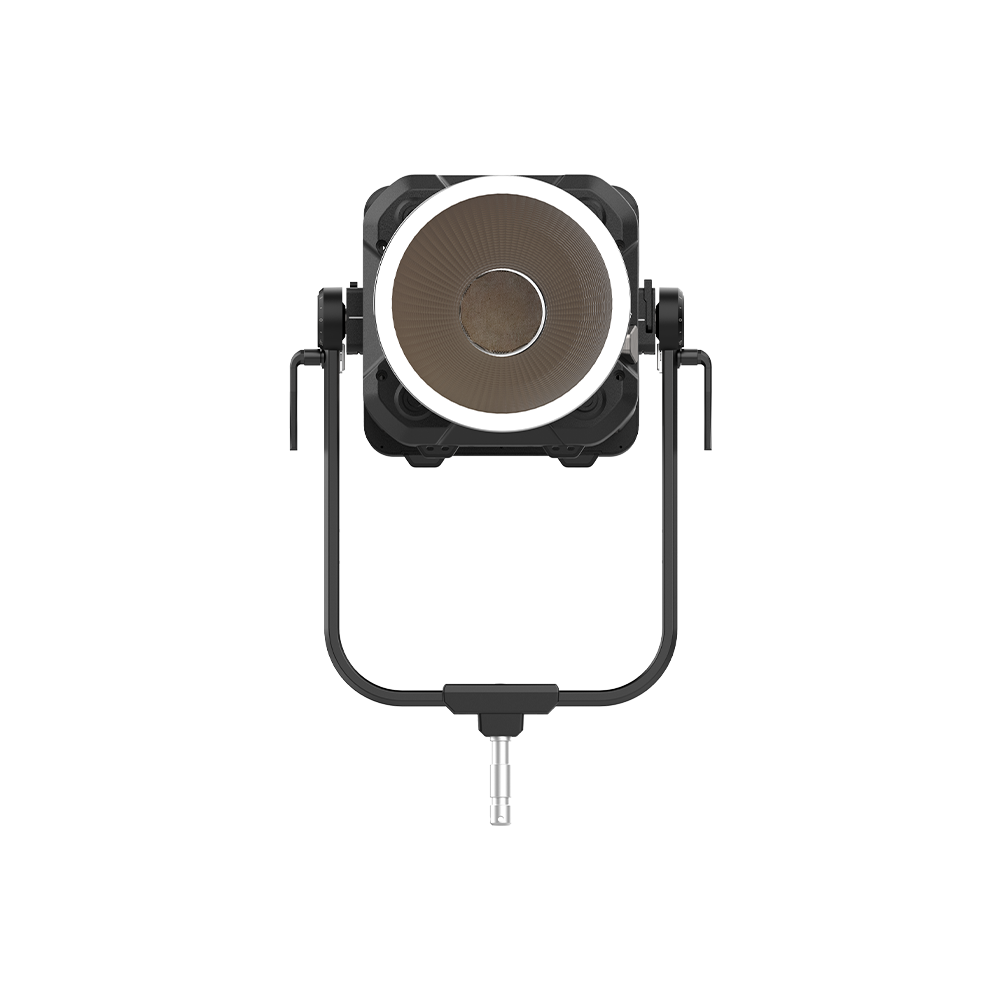

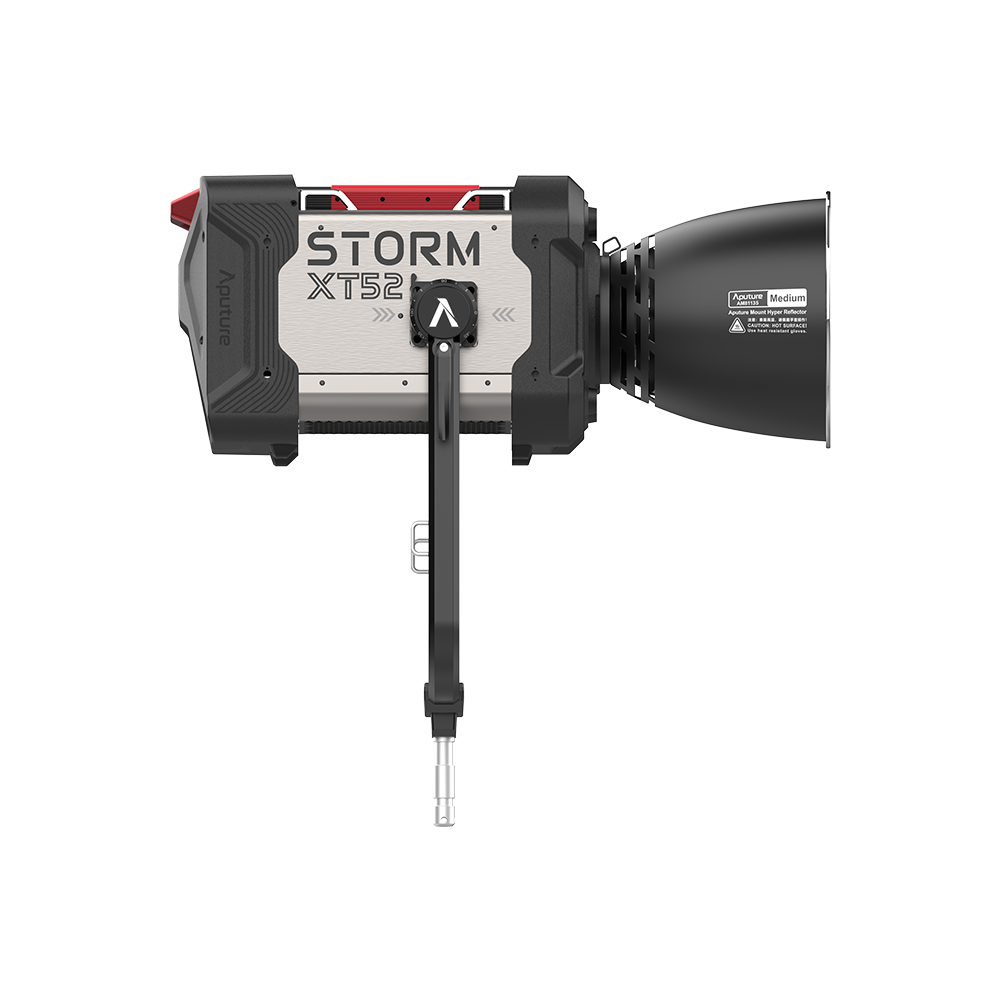

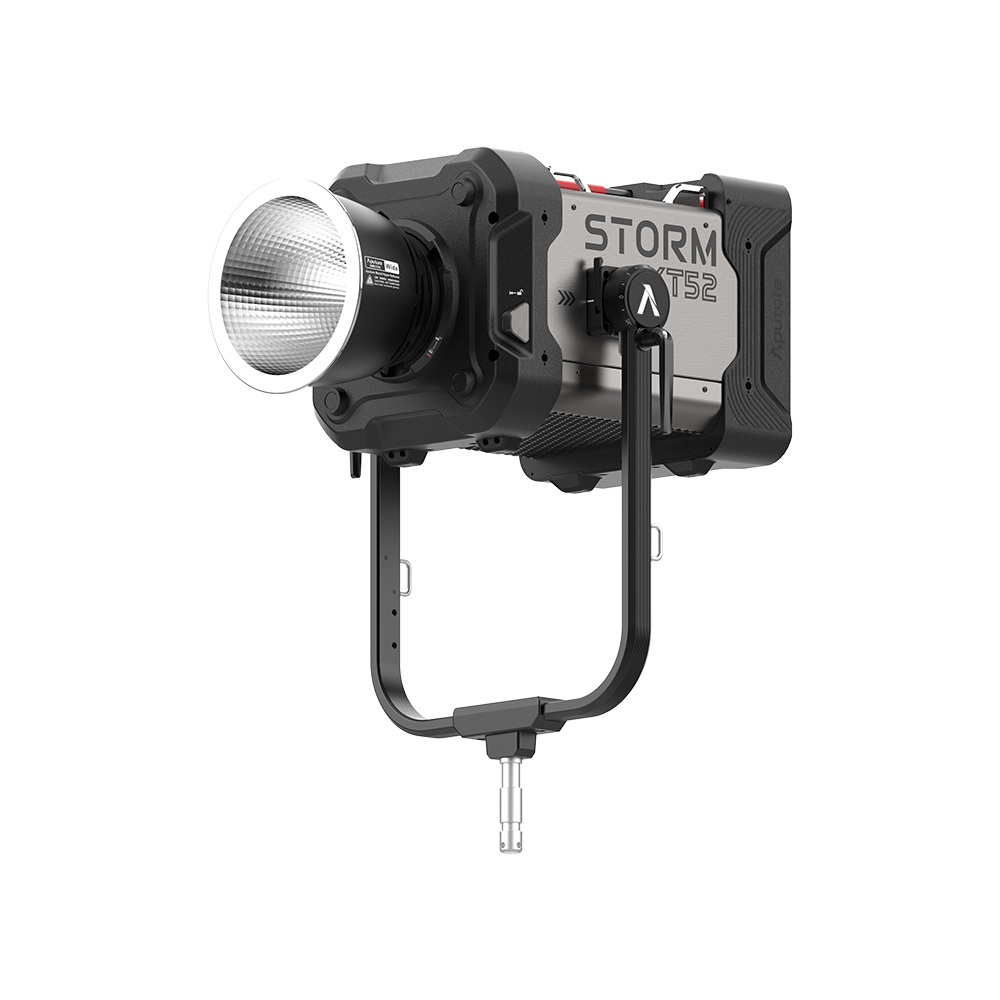

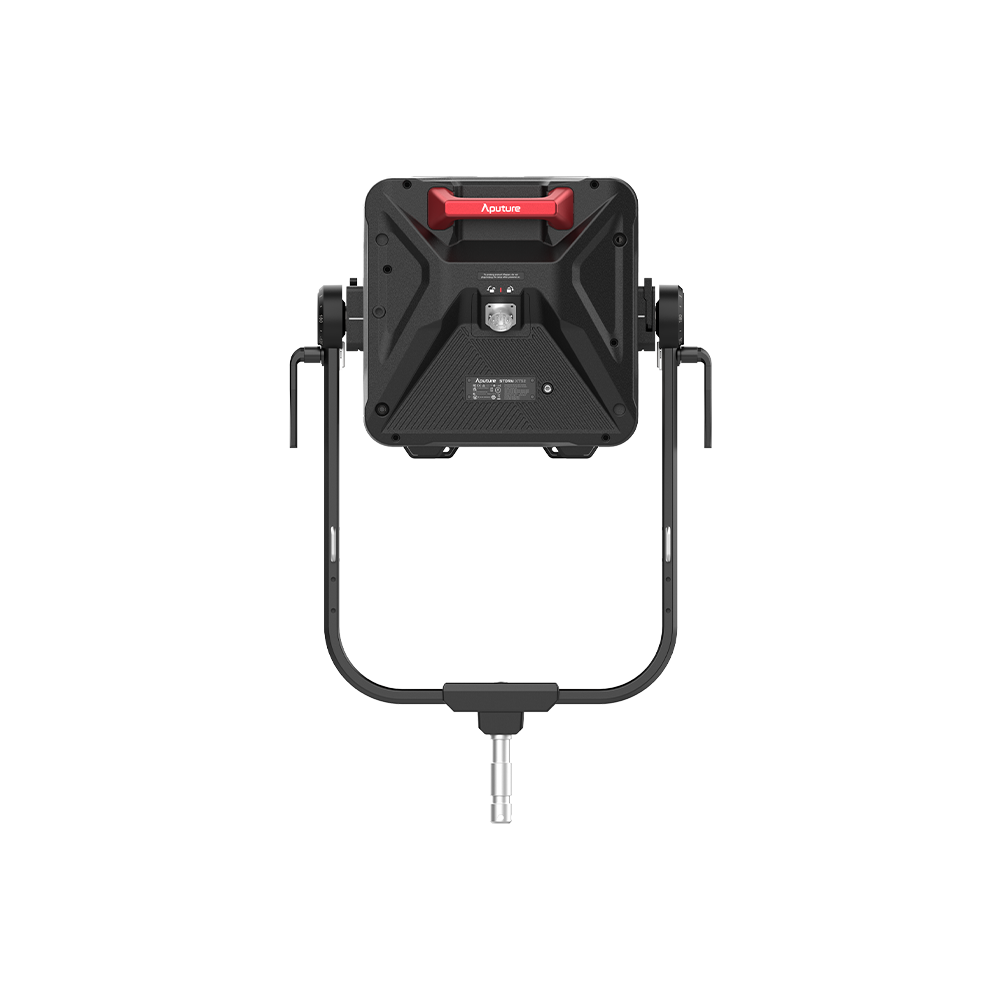

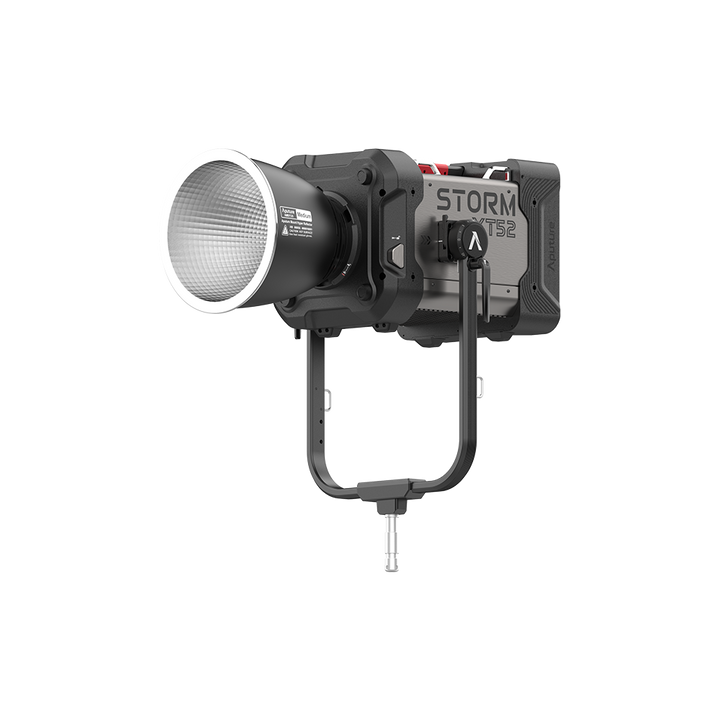

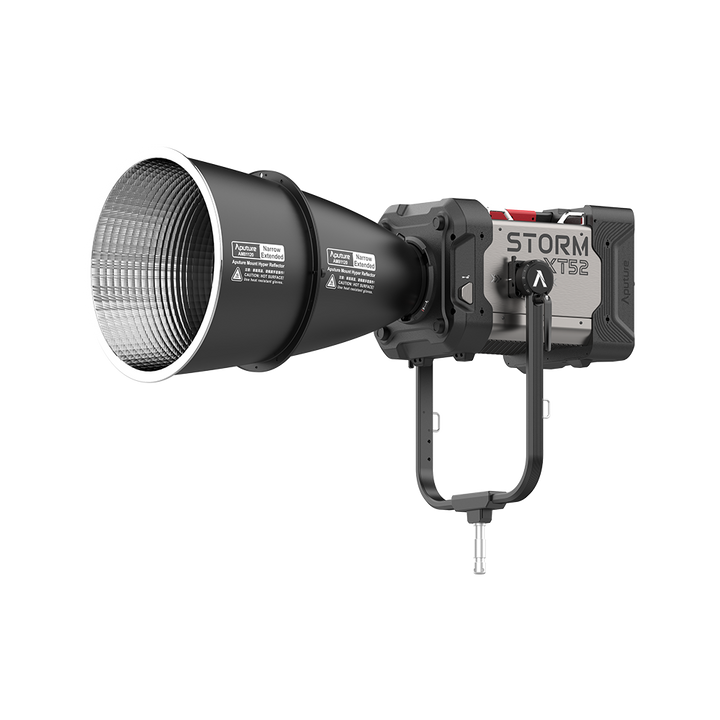

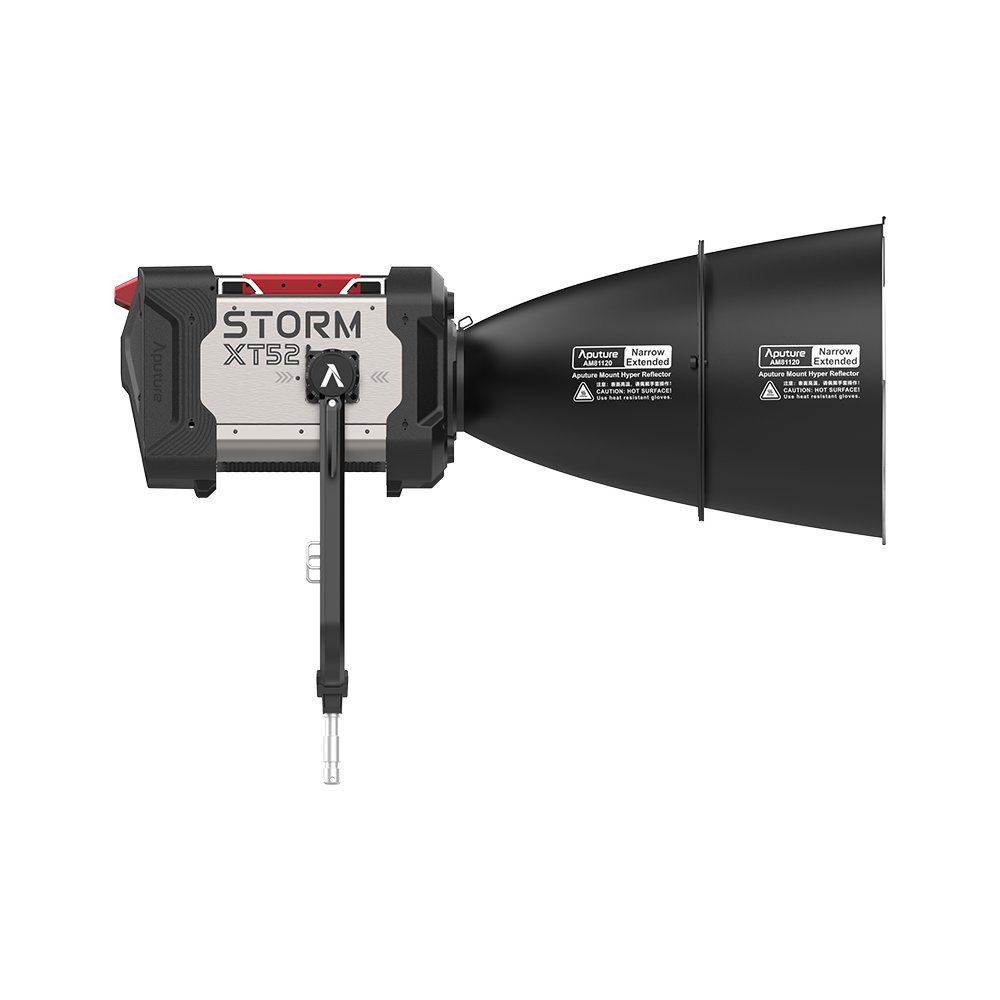

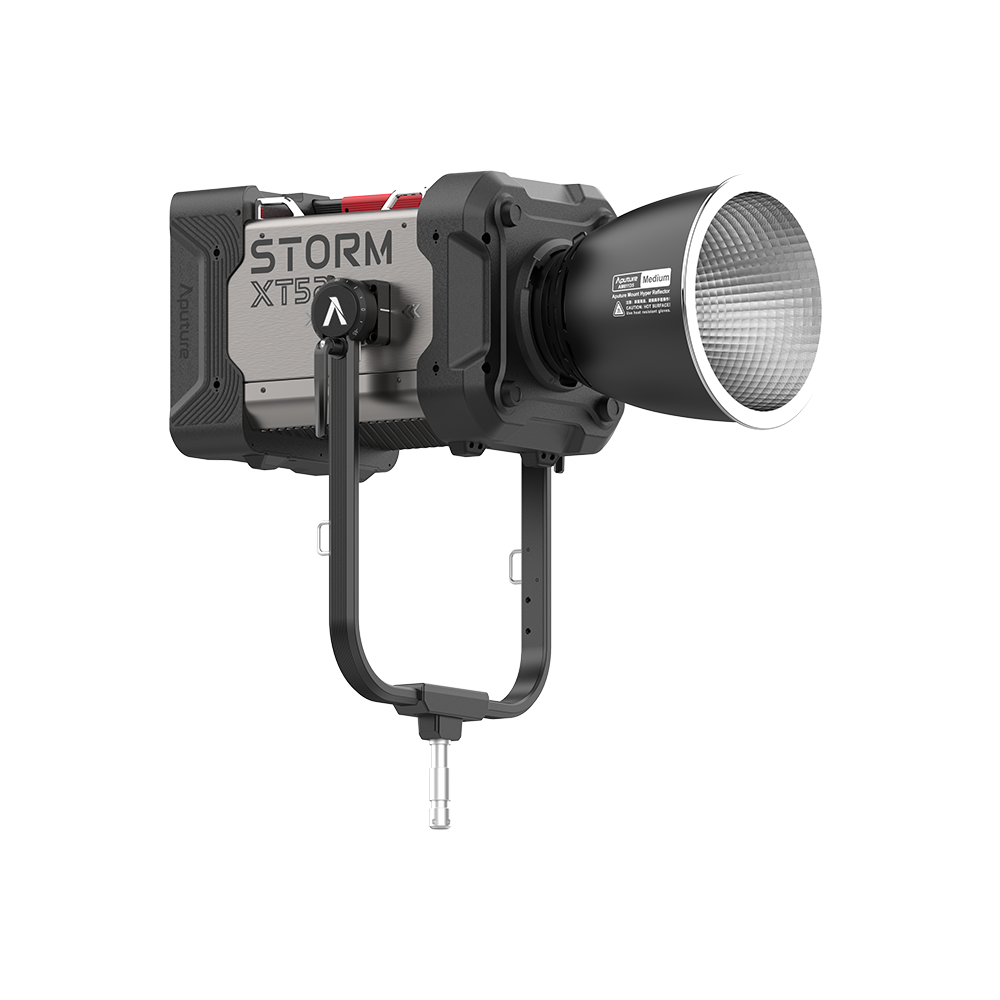

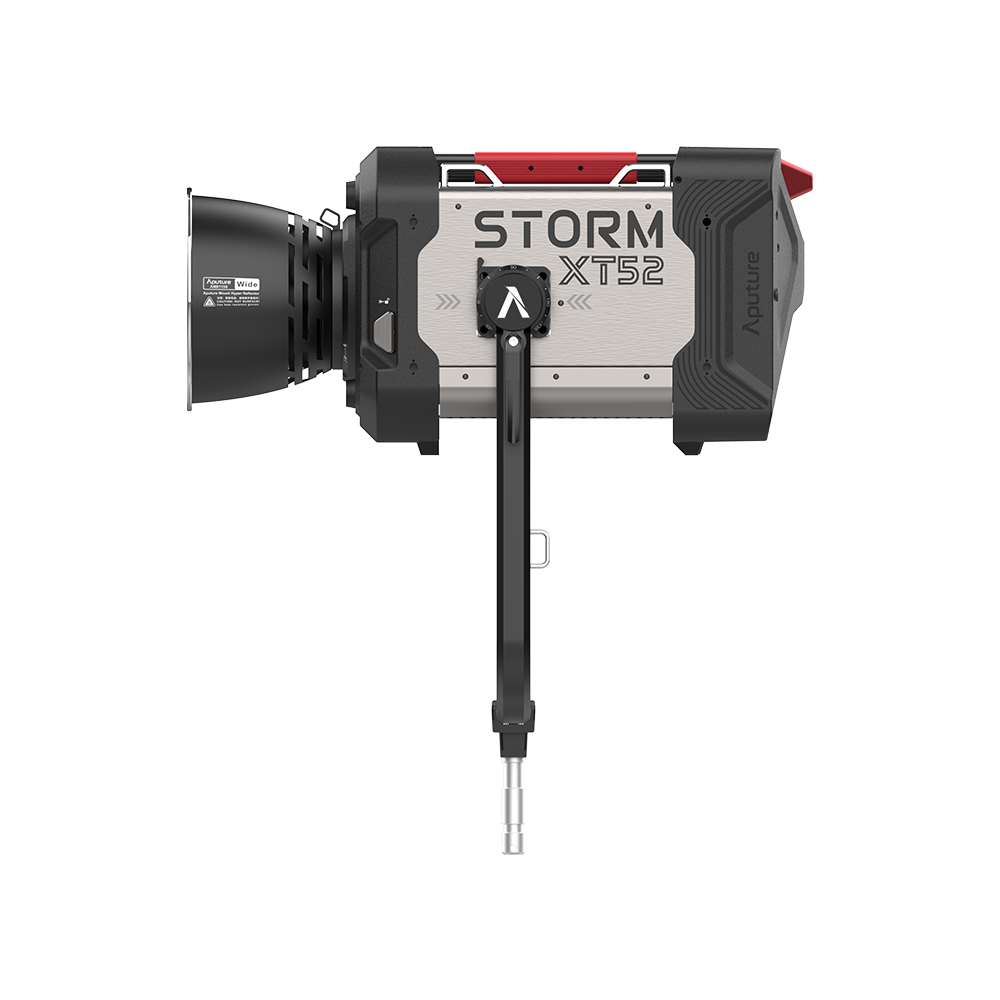

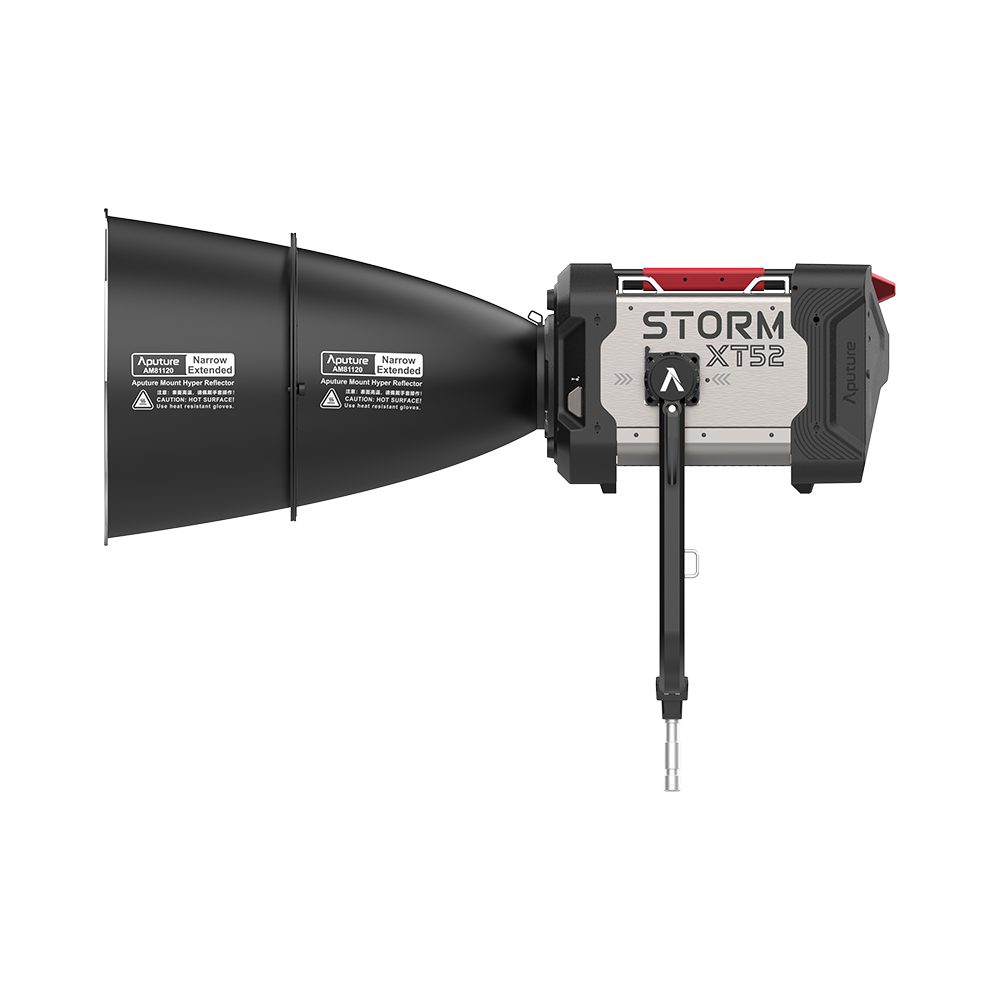

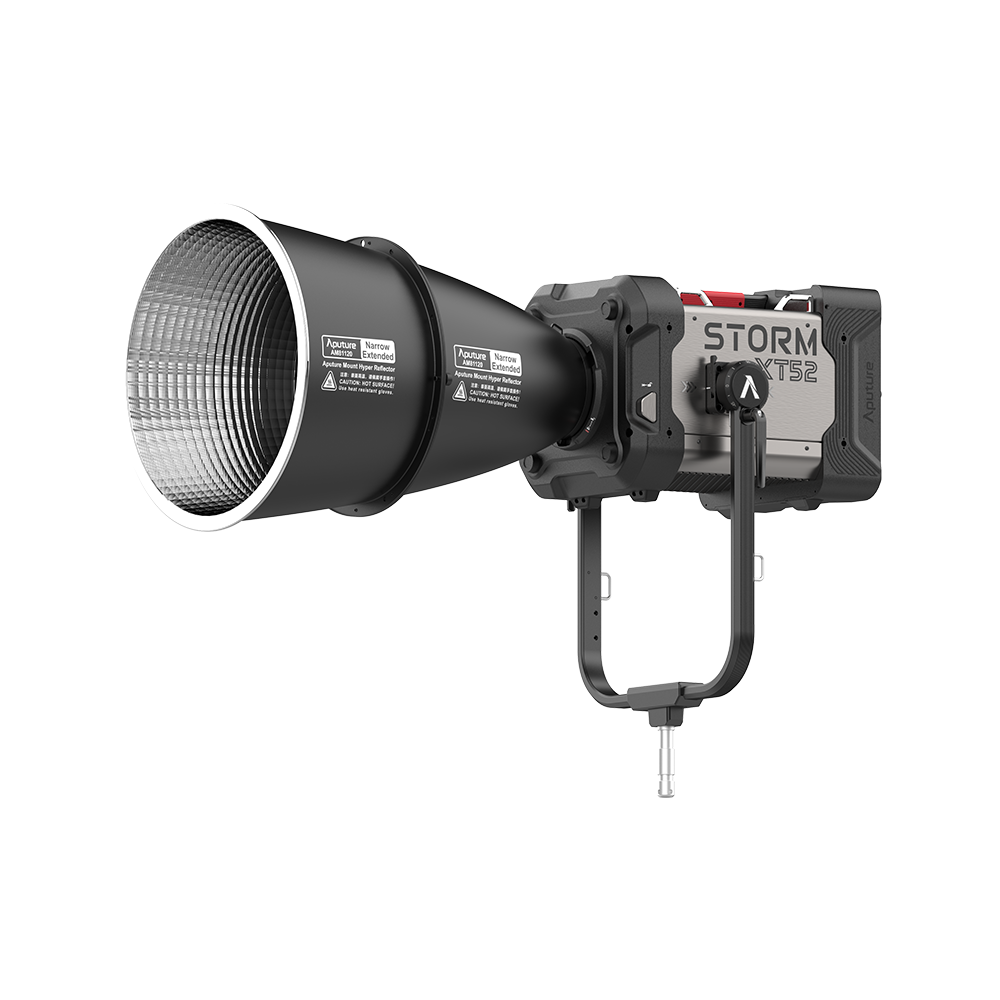

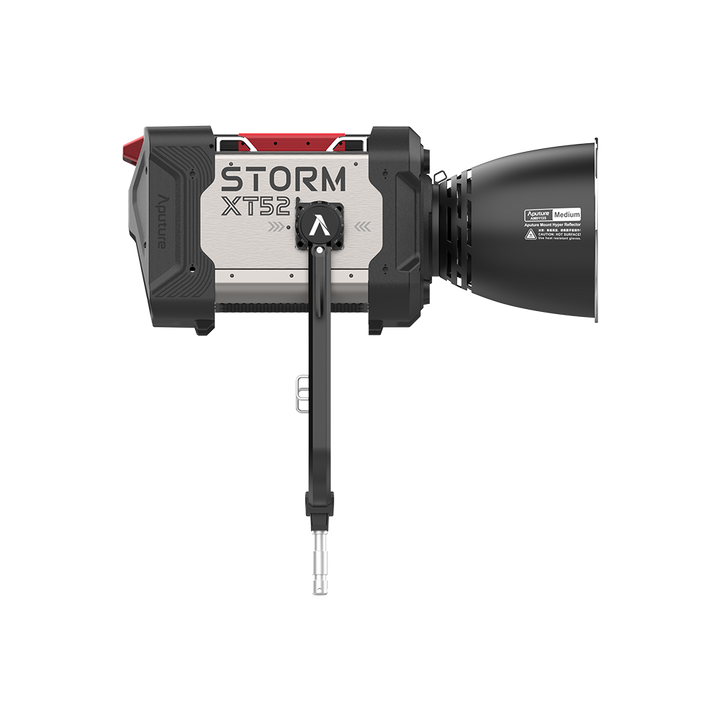

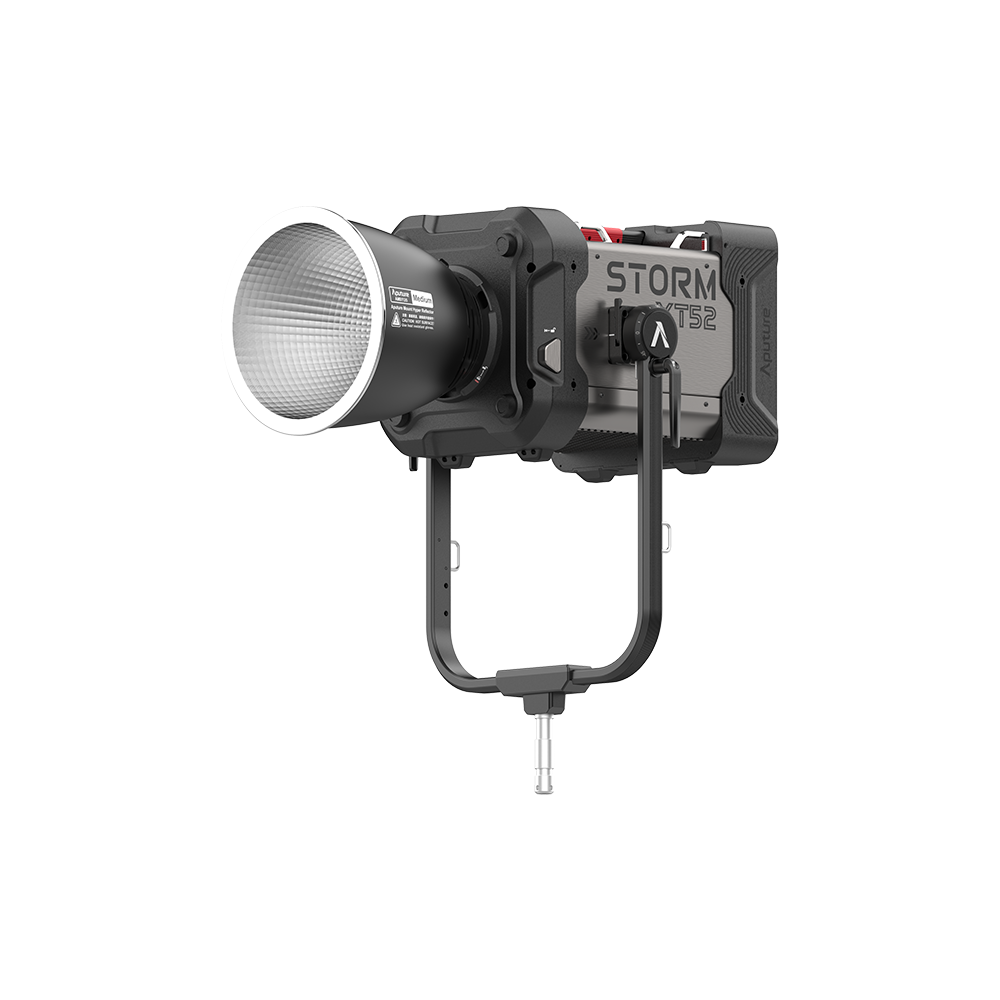

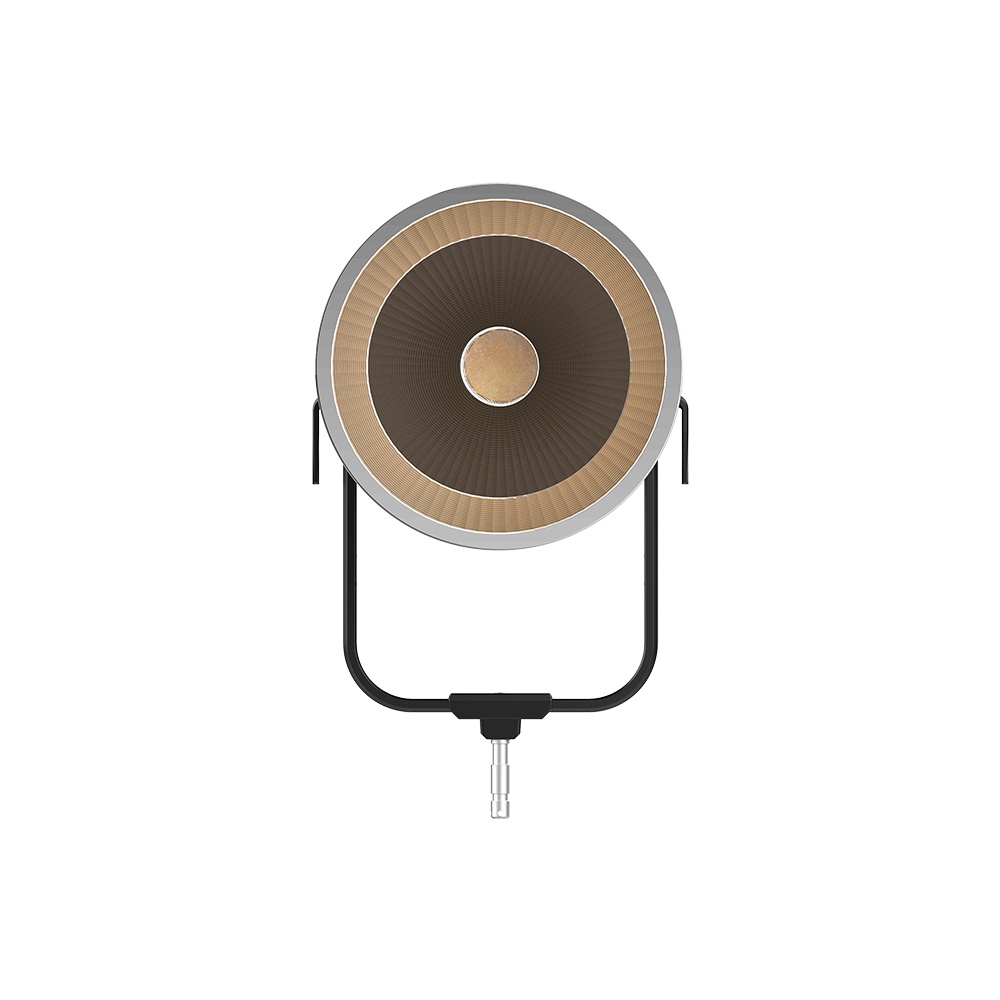

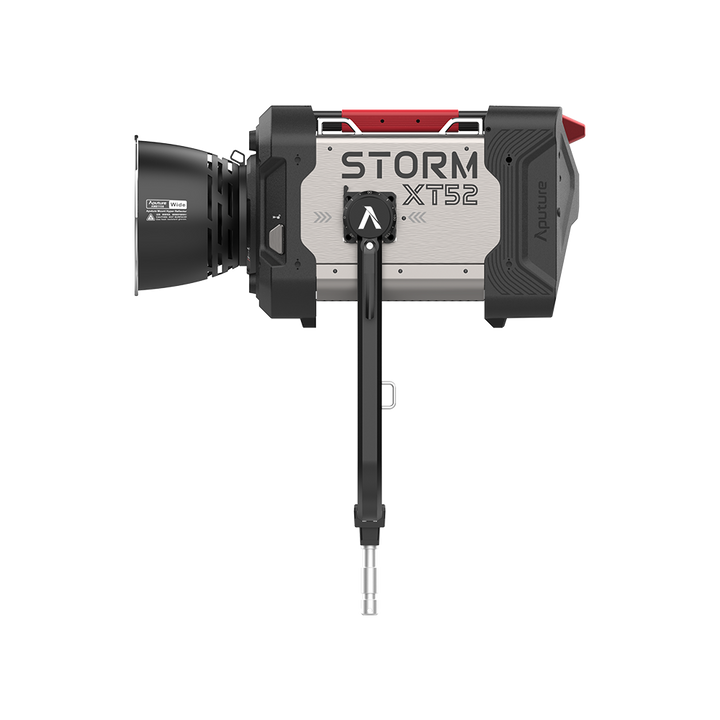

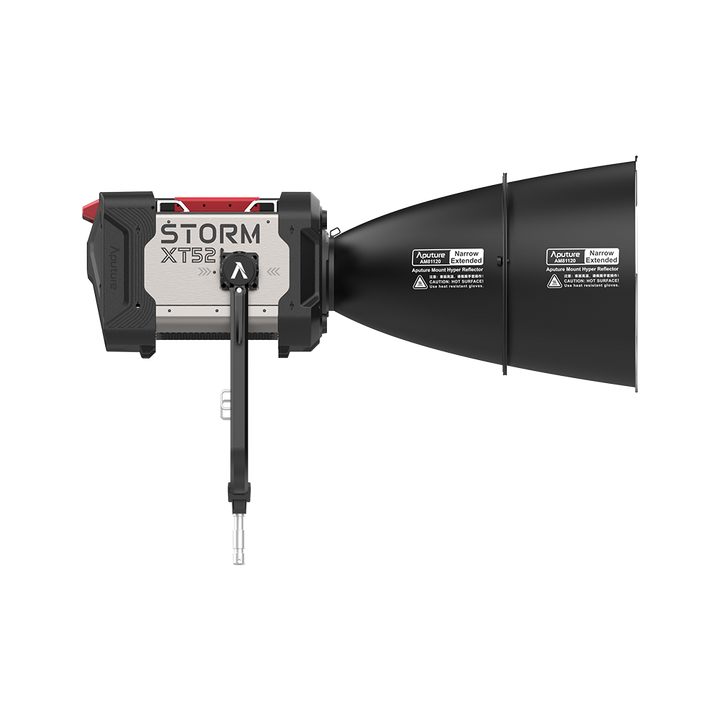

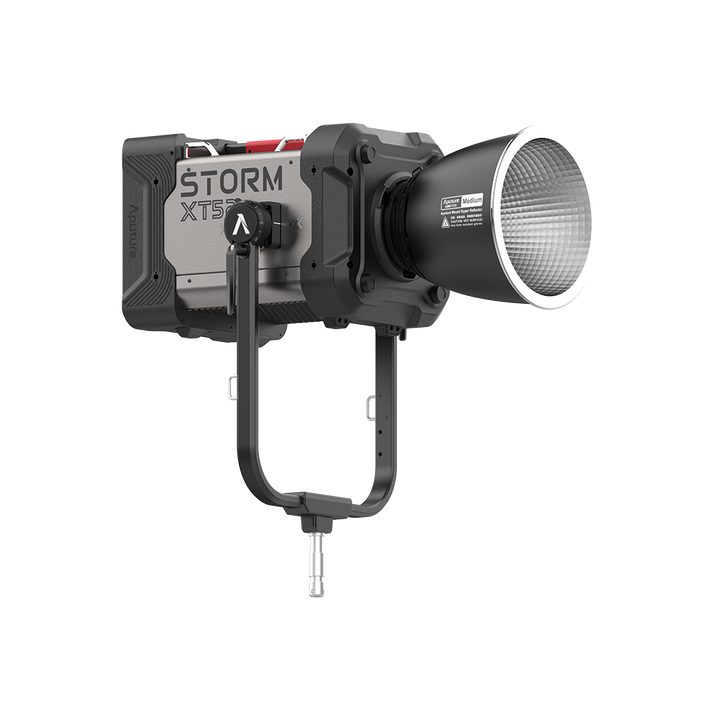

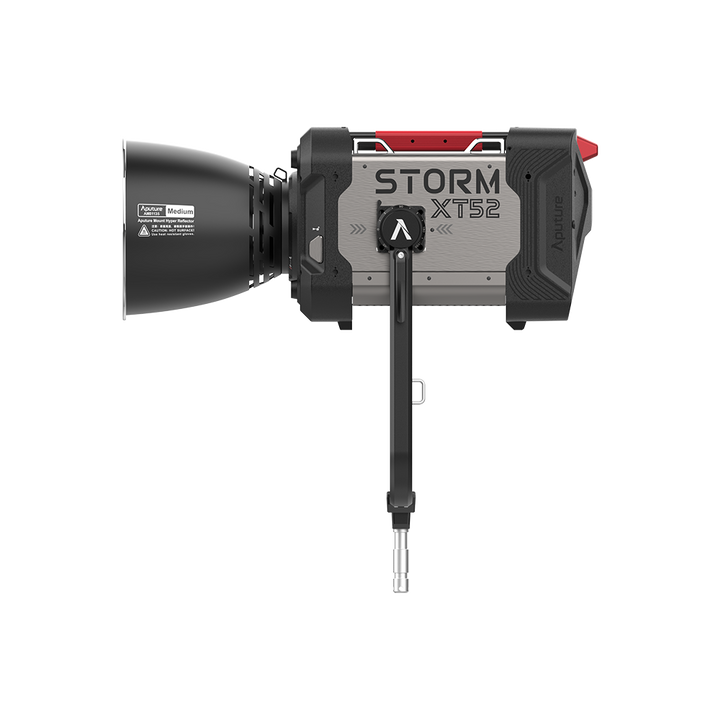

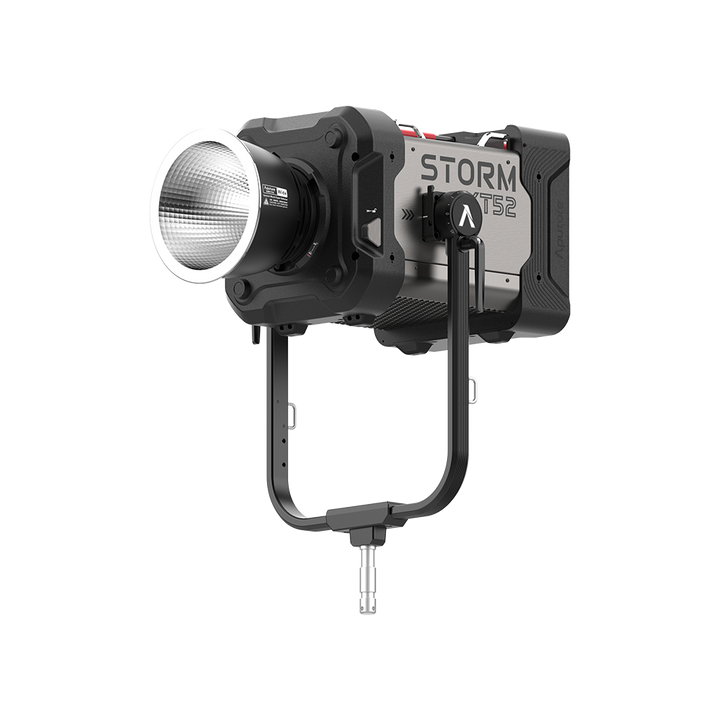

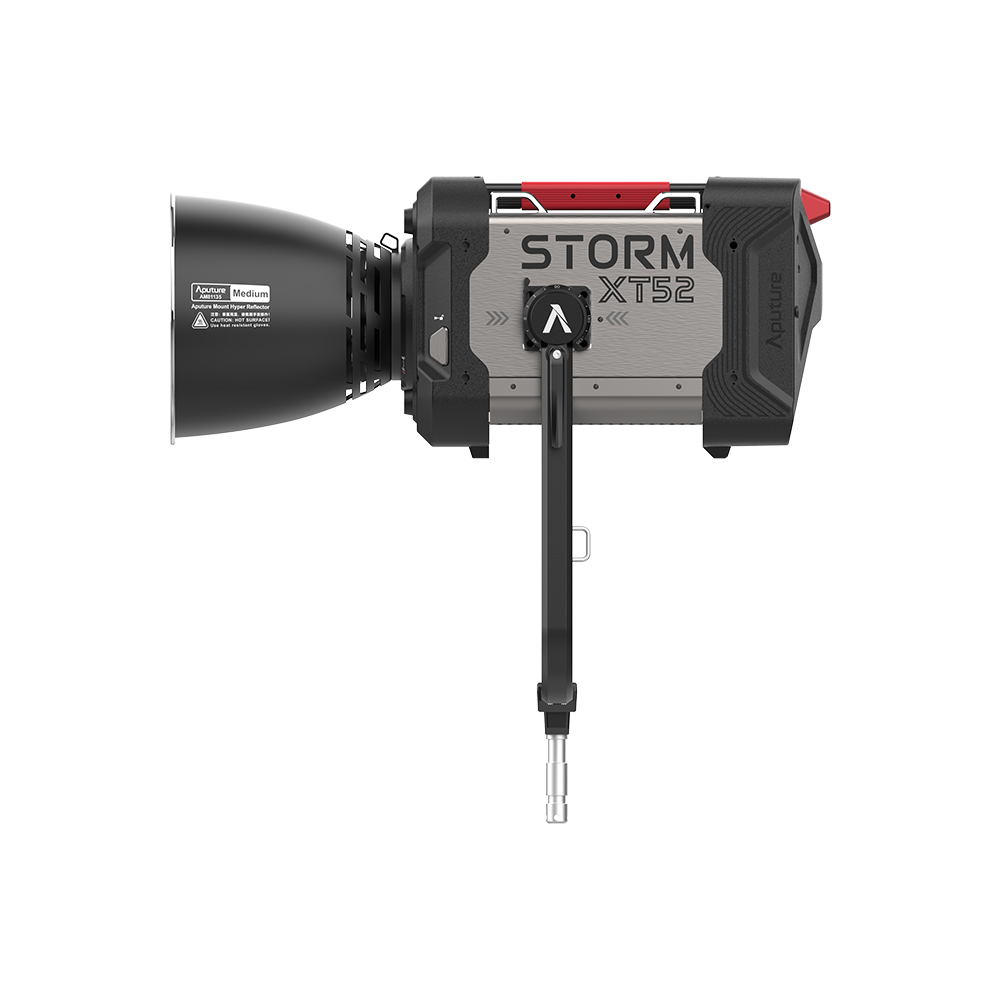

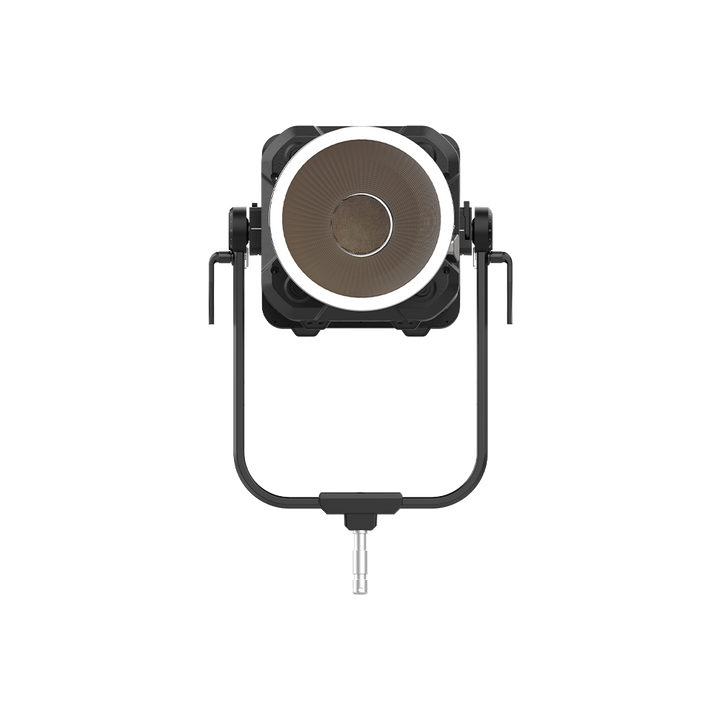

The Aputure STORM XT52 is a revolutionary high-output 5,200W full-white LED pointsource fixture designed to redefine professional lighting standards. As the most powerful tunable white LED point-source fixture, the STORM XT52 delivers output greater than a 6,000W HMI. Engineered with Aputure’s revolutionary BLAIR chipset, the XT52 incorporates an advanced diode mix of Blue, Lime, Amber, Indigo, and Red, allowing for exceptional spectral accuracy and refined white-point control.
The STORM XT52 features a fully tunable CCT range from 2,500K to 10,000K, with support for both CIE Daylight and Blackbody white light standards, ensuring unmatched flexibility across any lighting environment. Its advanced white-point control system includes ±G 100% ASC MITC range green-magenta tint correction, allowing seamless integration into mixed-lighting environments. With third-generation Aputure HyperDrive LED driver technology, the XT52 achieves flicker-free performance at all color temperatures above 20% output, ensuring smooth intensity transitions and precision control for high-speed cinematography.

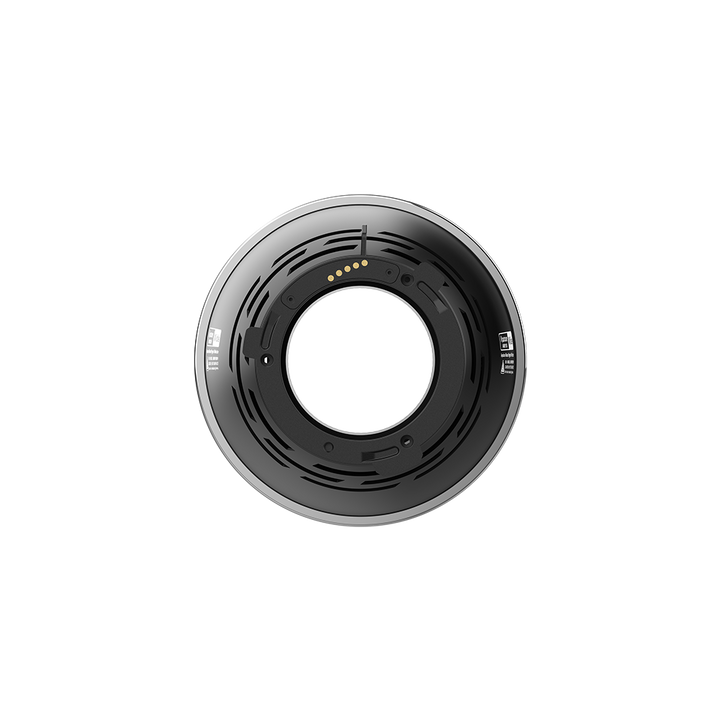

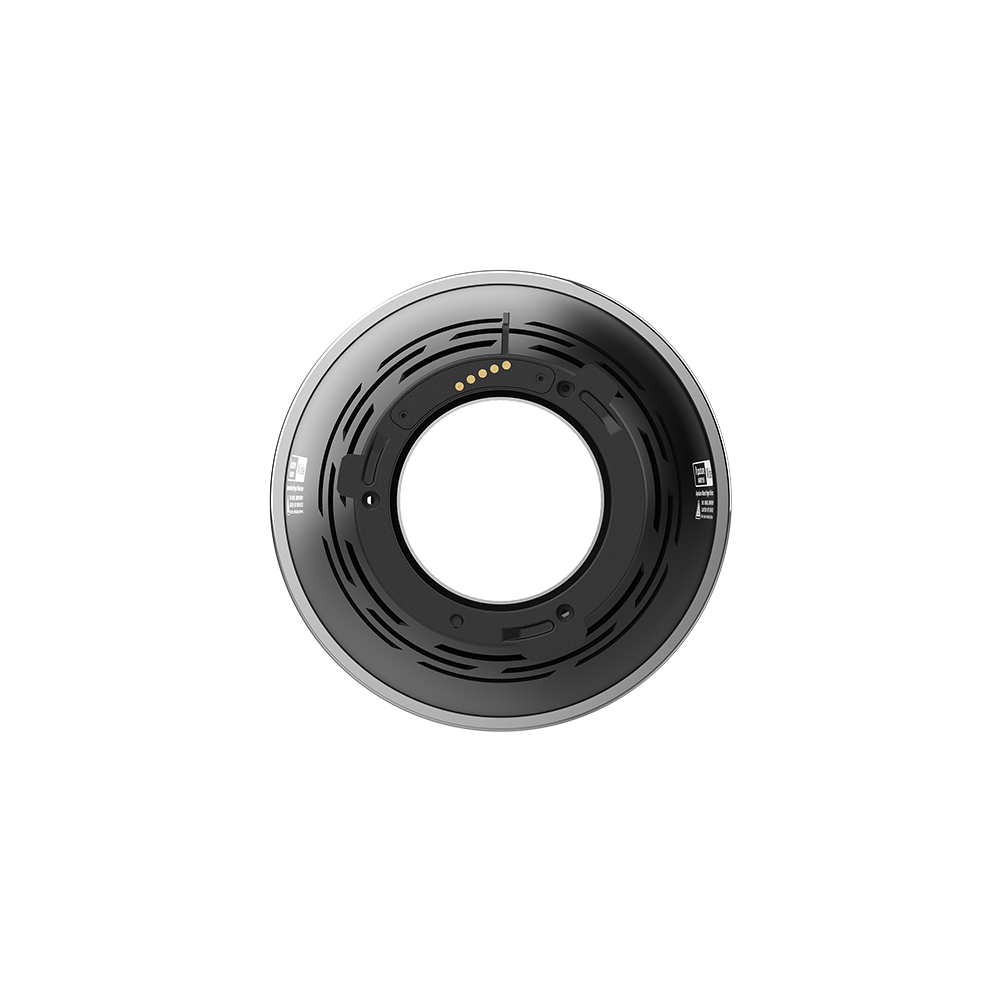

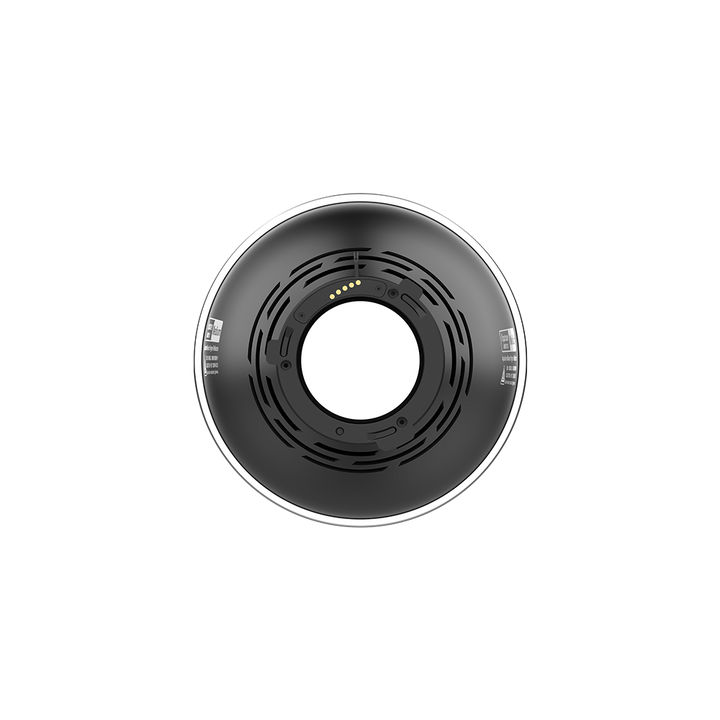

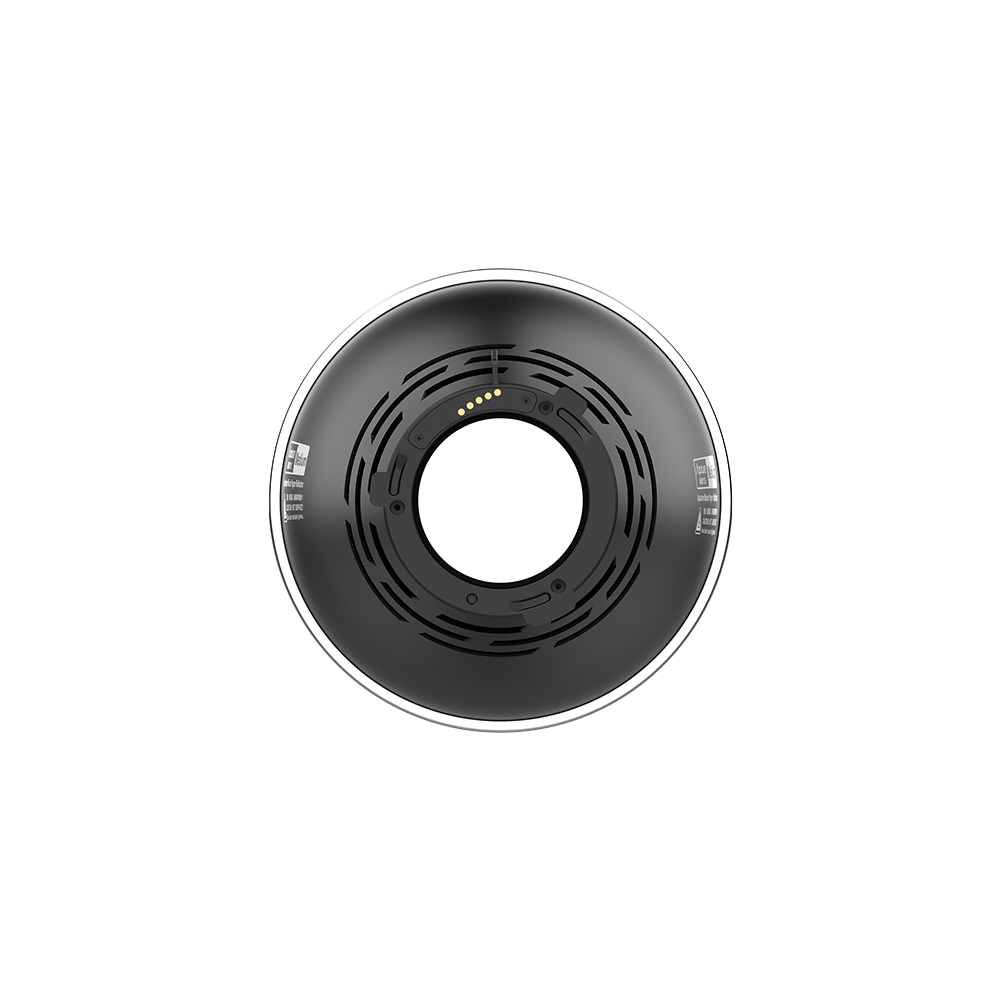

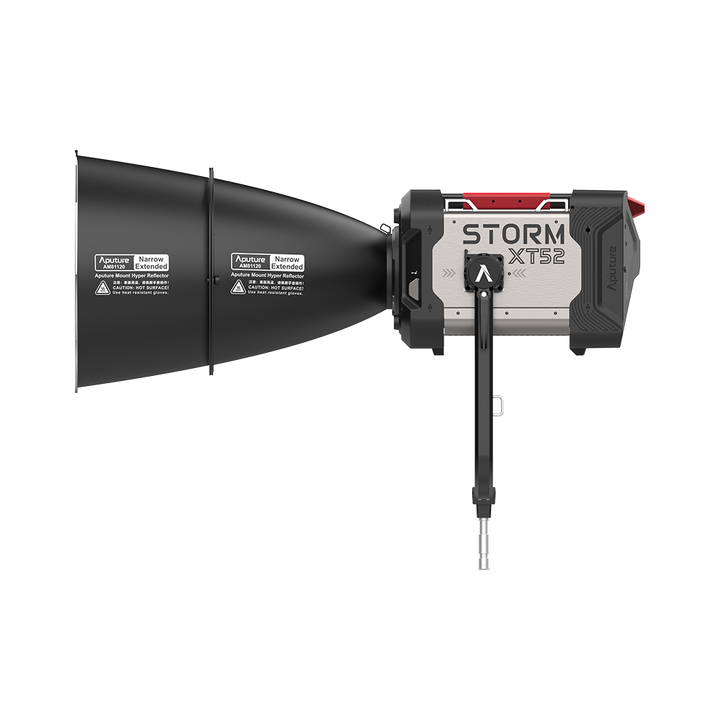

Designed for large-scale productions, the electronic Aputure Mount ensures compatibility with Aputure’s ecosystem of high-output modifiers, including the CF16 Motorized Fresnel and other large-format optical and softbox accessories. Auto output calibration and chip protection optimize light quality when using Aputure Mount modifiers while protecting the LED chip from overheating. Featuring head cables capable of daisy-chaining up to 45 meters, the XT52 provides extended rigging flexibility for studio and location lighting setups.

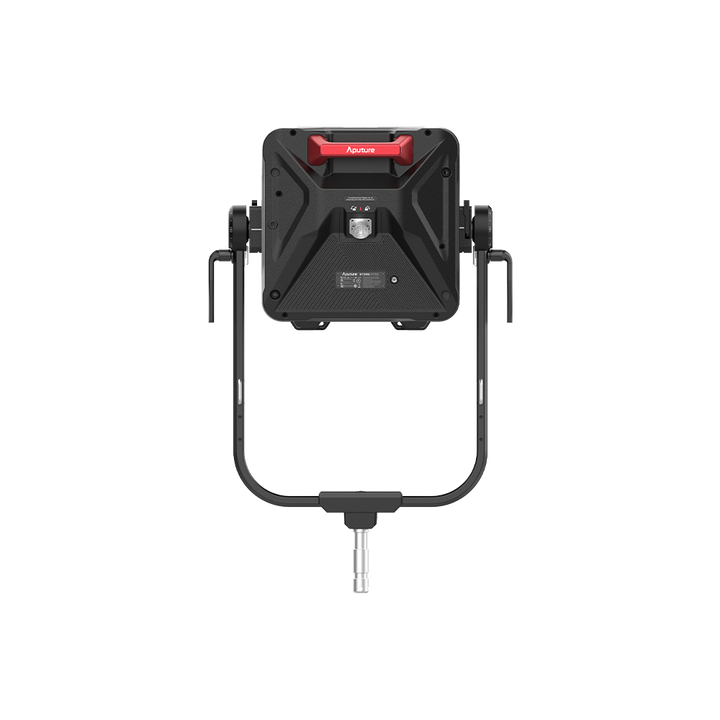

Engineered to withstand the demands of professional filmmaking, the STORM XT52 boasts an IP65 dust and water-resistant design, ensuring reliability in extreme environments. Its advanced liquid-cooling technology maintains optimal thermal performance, reducing noise and extending LED lifespan. A removable heavy-duty yoke increases storage and rigging possibilities, while its stackable lamp head design is optimized for shelf and head cart storage.
With multiple industry-standard control methods, including Sidus Link®, LumenRadio CRMX, Art-Net & sACN via etherCON, and 16-bit DMX512, the STORM XT52 ensures seamless compatibility with modern lighting workflows. Additionally, Sidus NFC Quick Configuration allows for rapid setup and fixture addressing. Its service-friendly modular sub-assembly design incorporates circuit board-level fault inspection and error monitoring, minimizing downtime and maximizing efficiency on set.
The STORM XT52 can be purchased with or without flight cases, allowing users to order the configuration that they need to efficiently store and transport their light. Delivering unparalleled output, precision color accuracy, and next-generation LED technology, the Aputure STORM XT52 redefines the future of high-output LED lighting, offering a powerful, reliable, and intelligent solution for high-end film industry professionals.
| CCT | Dis. | No Reflector | 50° Reflector | 35° Reflector | 25° Reflector | 20° Reflector |
|---|---|---|---|---|---|---|
| 2,500K | 3m | 15,950 lux 1,481 fc | 47,800 lux 4,440 fc | 90,900 lux 8,445 fc | 151,200 lux 14,044 fc | - |
| 2,500K | 5m | 5,990 lux 556 fc | 17,500 lux 1,625 fc | 31,300 lux 2,908 fc | 52,500 lux 4,692 fc | 93,200 lux 8,658 fc |
| 3,200K | 3m | 18,870 lux 1,753 fc | 58,380 lux 5,424 fc | 103,500 lux 9,616 fc | 189,500 lux 17,605 fc | - |
| 3,200K | 5m | 7,180 lux 667 fc | 24,500 lux 2,276 fc | 35,400 lux 3,289 fc | 66,000 lux 6,132 fc | 119,600 lux 11,111 fc |
| 4,300K | 3m | 22,830 lux 2,121 fc | 151,200 lux 14,044 fc | 131,300 lux 12,200 fc | 218,800 lux 20,320 fc | - |
| 4,300K | 5m | 8,620 lux 801 fc | 52,500 lux 4,692 fc | 45,300 lux 4,209 fc | 75,900 lux 7,409 fc | 134,500 lux 12,490 fc |
| 5,600K | 3m | 22,080 lux 2,051 fc | 68,400 lux 6,355 fc | 124,400 lux 11,557 fc | 222,000 lux 20,625 fc | - |
| 5,600K | 5m | 8,420 lux 782 fc | 24,480 lux 2,274 fc | 41,900 lux 3,893 fc | 77,500 lux 7,200 fc | 136,500 lux 12,681 fc |
| 10,000K | 3m | 17,140 lux 1,592 fc | 51,900 lux 4,822 fc | 98,600 lux 9,162 fc | 163,000 lux 15,140 fc | - |
| 10,000K | 5m | 6,420 lux 596 fc | 18,970 lux 1,762 fc | 33,900 lux 3,150 fc | 56,800 lux 5,277 fc | 100,600 lux 9,340 fc |
