CLAY PAKY SHARPY FIXTURE COMPLETE

CLAY PAKY SHARPY FIXTURE COMPLETE

Rental Price  Regular price$400.00
/
Prices Are Subject To Change Without Notice

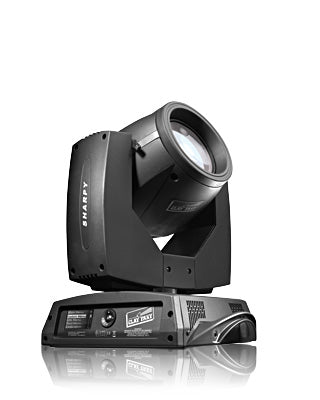

Sharpy is a 189W moving beam light with an unprecedented brightness usually achievable only with far greater wattages.

Weighing just 19 kg, Sharpy produces a perfectly parallel, laser-like beam with an incredible output of 59,760 lx at 20m (5,100 footcandles at 65 ft). Sharpy is also groundbreaking for the purity of its beam, which is sharply defined and free of any halo or discoloration around the edges.

It offers 14 different colors and 17 gobos, allowing you to change the shape of the beam and create an array of spectacular mid-air effects.  With its light weight and modest footprint, Sharpy is small enough to be fitted anywhere – on trusses at live and TV events, on stage, in showrooms or conference rooms. Sharpy is also available in a shiny mirror-finish chrome version, adding glamour to sets while making lights a less invasive presence.

LIGHT SOURCE TYPE

  • Discharge lamp with a short arc burner in a reflector system Type:
  • OSRAM SIRIUS HRI® 190W+ (LAM002) - STANDARD
  • Philips MSD Platinum 5R (L10103) - OPTIONAL
    - Output Lamp power: 189W
    - Colour temperature: 8,000 K
    - Average life: 2,000 h. The Osram lamp features 3000hrs* if used with an integral Osram light engine (lamp + power supplier)
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • 3-lens HQ optical group (patent pending)
  • Adjustable Beam Angle: from zero to 3.8°
  • Focus: electronic
  • Luminous flux: 7,950 lm
  • Light output at 20 meters (65 feet): 59,760 lux
  • High efficiency optical system

CONTROL and CONNECTIONS

  • Personalities: two modes with 16/20 control channels
  • DMX protocol signal: USITT DMX 512
  • Art-Net / RDM / sACN
  • Display: Graphic LCD backlit b/w Display
  • Pan/Tilt Resolution: 16 bit
  • Movement control: vectorial
  • DMX signal connection: 3 and 5 pole XLR input and output
  • Software upload through DMX input

DYNAMIC EFFECTS

  • Colours:
    • Interchangeable color wheel with 14 colors + open
  • Gobos:
    • Interchangeable gobo wheel with 17 fixed gobos + open
  • Frost:
    • Linear frost filter
  • Movement:
    • PAN = 540° - TILT = 250°
      Maximum speeds:
      - PAN = 2.45 sec
      - TILT = 1.30 sec
      Resolution:
      - PAN = 2.11° - PAN FINE = 0.008°
      - TILT = 0.98° - TILT FINE = 0.004°
      Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit.
  • Beam:
    • Motorized  Focus
  • Dimmer/Shutter:
    • Shutter and Strobe effect
    • High resolution dimmer 16 bit

HARDWARE and SOFTWARE

  • Long life self-charging buffer battery
  • Function reset from the lighting desk
  • ON/OFF lamp control from the lighting desk
  • "AUTOTEST" function from menu
  • Electronic monitoring with status error
  • Cooling system monitoring
  • DMX level monitoring on all channels
  • Internal data transmission diagnostics
  • Firmware upgrade with no power
  • Firmware upload from another fixture
  • Remote access through RDM

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 350VA

SAFETY SPECS

  • Minimum distance of illuminated objects 8 meters (26’ 3”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Bipolar circuit breaker with thermal protection.
  • Automatic break in power supply in case of overheating or failed operation of cooling system.
  • Forced ventilation with axial fans

COMPLIANCE

  • In conformity with the European Directives:
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • ETL This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573 and CSA C22.2 No. 166 standards.

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (4 positions)

WEIGHT - SIZE

  • 19 Kg (41,8 lbs)

ACCESSORIES

  • Omega clamps: 2x183102/805 (included)
  • Power cord: CAB03E/802 (included)
  • Foam shell: F21178 (optional)
  • Flight case 4 positions: F21200 (optional)
  • Safety Chain: 105041/003 (optional)
