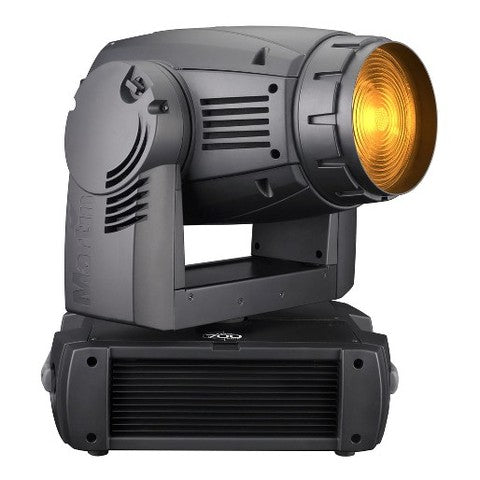

MAC 700 WASH FIXTURE COMPLETE

The MAC 700 Wash is an exceptionally powerful wash light with a clean, even, soft-edged beam, a motorized zoom, indexible beamshaper and rich CMY color mixing.

FEATURES

• 700 W short arc discharge lamp
• Total output up to 18700 lumens
• CMY color mixing system
• 8 position color wheel plus open
• Variable CTC
• Indexing & rotating beamshaper
• Strobe effect 2 - 10 Hz, random strobe, pulse effects
• Motorized zoom
• Mechanical dimming
• Pan and tilt range of 540°/246°
• Electronic ballast with hot lamp restrike and flicker free light
• Variable fan control for quieter operation

SPECIFICATIONS
PHYSICAL

• Length: 450 mm
• Width: 365 mm
• Height: 656 mm, head straight up
• Weight: 32 kg

DYNAMIC EFFECTS

• Color mixing: CMY, independently variable 0 - 100%
• Color wheel: 8 interchangeable filters (5 colors, UV, half minus green, CTC) + open
• Color temperature control: 0 - 100%
• Mechanical dimmer: 0 - 100%
• Shutter: Strobe effect 2 - 10 Hz, random strobe, pulse effects
• Beamshaper: 0° - 360° indexable, continuous rotation
• Zoom: 12.5° - 66°, 1/10 peak angles
• Pan: 540°
• Tilt: 246°

CONTROL AND PROGRAMMING

• DMX channels: 16/23
• Setting and addressing: Control panel with LED display
• 16-bit control: CMY, CTC, color wheel, mechanical dimmer, zoom, pan & tilt
• Movement control options: Tracking and vector
• Protocol: USITT DMX512/1990
• Receiver: Opto-isolated RS-485
• Firmware update: Serial upload via DMX link

LAMP

• Type: 700 W short-arc discharge
• Fitted as standard: Osram HTI 700/D4/75
• Color temperature: 7500 K
• CRI (Color rendering index): >85
• Average lifetime: 750 hours
• Hot restrike: Yes
• Socket: Double-ended SFc 10-4 with key
• Ballast: Electronic
• Approved alternative lamp(s): Philips MSR Gold 700 SA/2 DE

CONSTRUCTION

• Color(s): Black
• Housing: UV-resistant fiber-reinforced composite
• Reflector: Glass, cold light
• Protection rating: IP20

INSTALLATION

• Mounting points: 2 pairs of 1/4-turn locks
• Orientation: Any

CONNECTIONS

• AC power input: 3 m integral cable without power plug
• DMX data in/out: 3-pin and 5-pin locking XLR

ELECTRICAL

• AC power: 100-120/208-240 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch-mode
• Main fuse (100-120 V power): 15 AT (slow blow)
• Main fuse (208-240 V power): 10 AT (slow blow)
• TYPICAL POWER AND CURRENT
• 100 V, 60 Hz: 1019 W, 10.3 A, PF 0.996
• 110 V, 60 Hz: 977 W, 9.0 A, PF 0.995
• 120 V, 60 Hz: 988 W, 8.3 A, PF 0.995
• 208 V, 60 Hz: 949 W, 4.7 A, PF 0.976
• 230 V, 50 Hz: 944 W, 4.2 A, PF 0.973
• 240 V, 50 Hz: 940 W, 4.0 A, PF 0.970
• 250 V, 50 Hz: 940 W, 3.9 A, PF 0.966
• Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

THERMAL

• Cooling: Filtered forced air (temperature-regulated, low noise)
• Maximum ambient temperature (Ta max.): 40° C
• Maximum surface temperature, steady state, Ta=40° C: 160° C
• Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 3340 / 3190 BTU/hr.

APPROVALS

• EU safety: EN 60598-1, EN 60598-2-17
• EU EMC: EN 55 015, EN 55 103, EN 61 000-3
• US safety: ANSI/UL 1573
• Canadian safety: CSA C22.2 No. 166
• CE ETL C US Intertek
