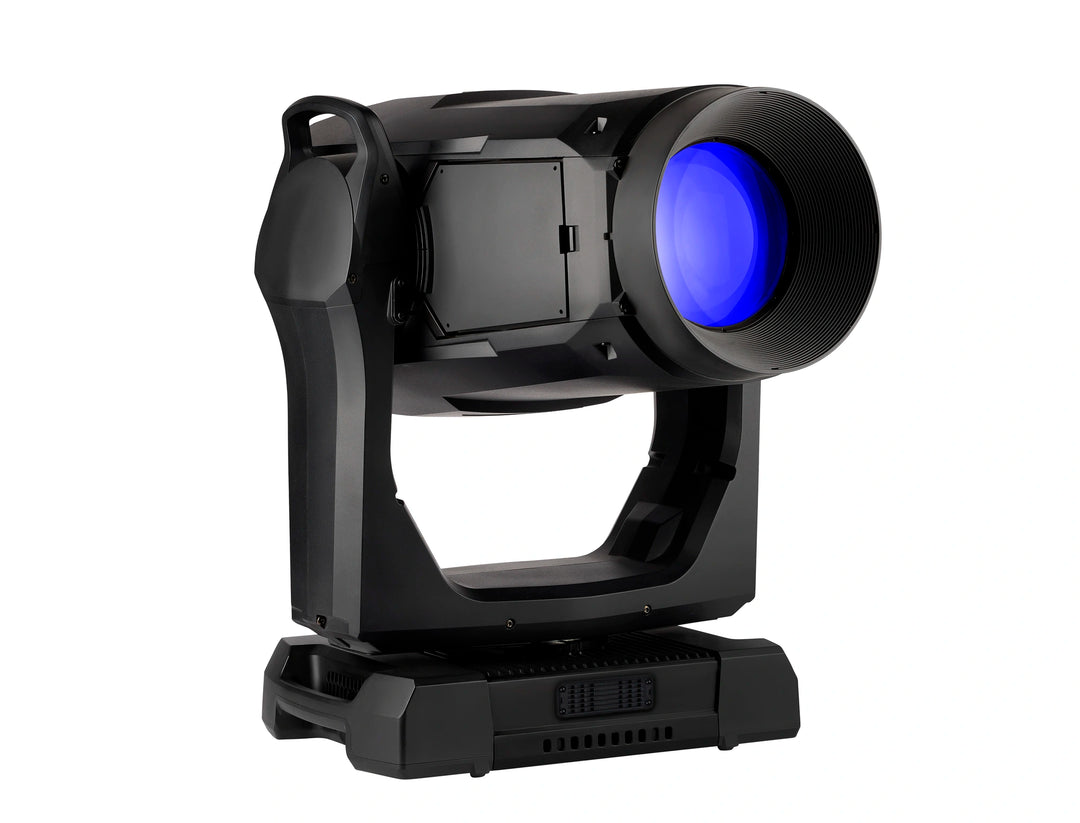

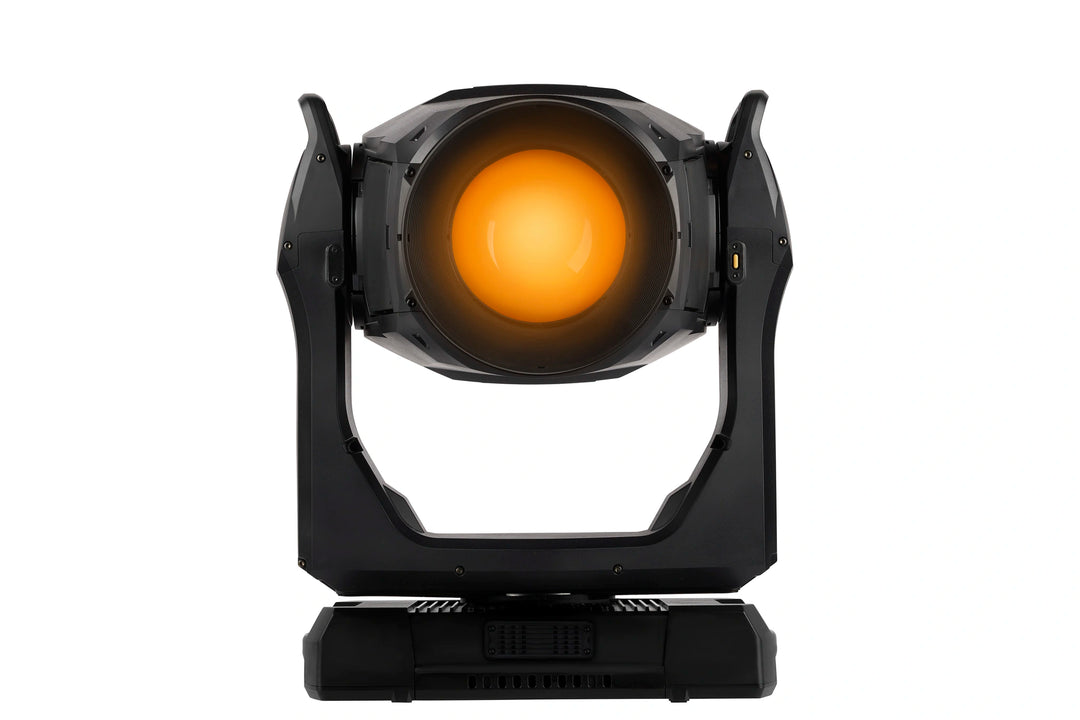

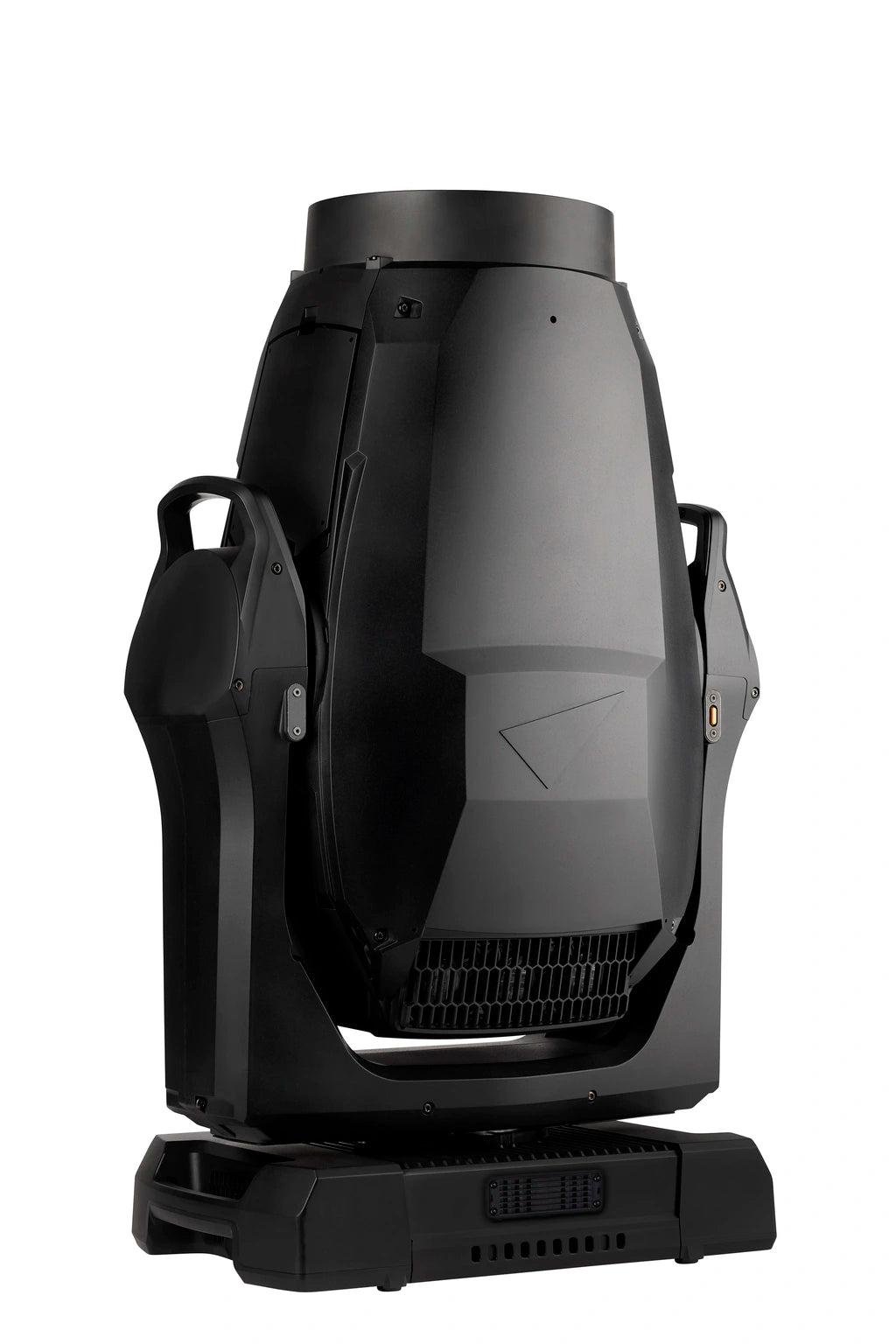

The Martin MAC Viper XIP next-generation, Viper-class moving head combines legendary Viper performance, Martin XIP smart weatherproofing technology, and the most robust feature set Martin has ever developed. Drawing on best-in-class features that defined the iconic Viper lineup, including Viper Profile, Performance, Wash and Wash DX, MAC Viper XIP builds on its heritage, setting a new standard for all-in-one performance, innovation and reliability.

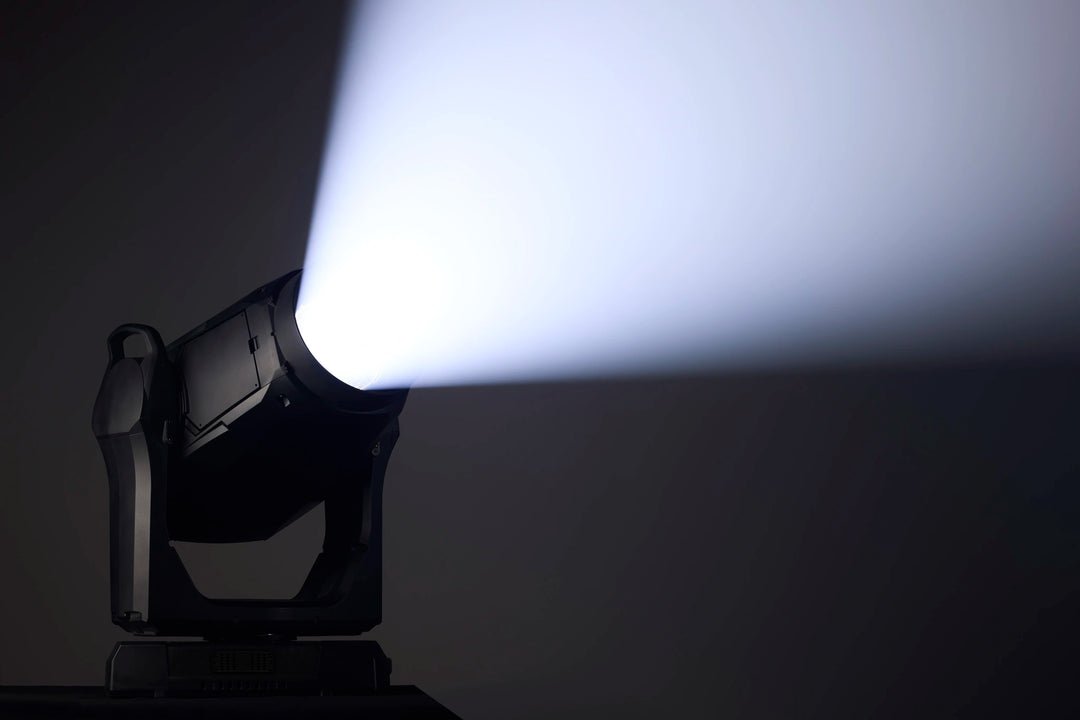

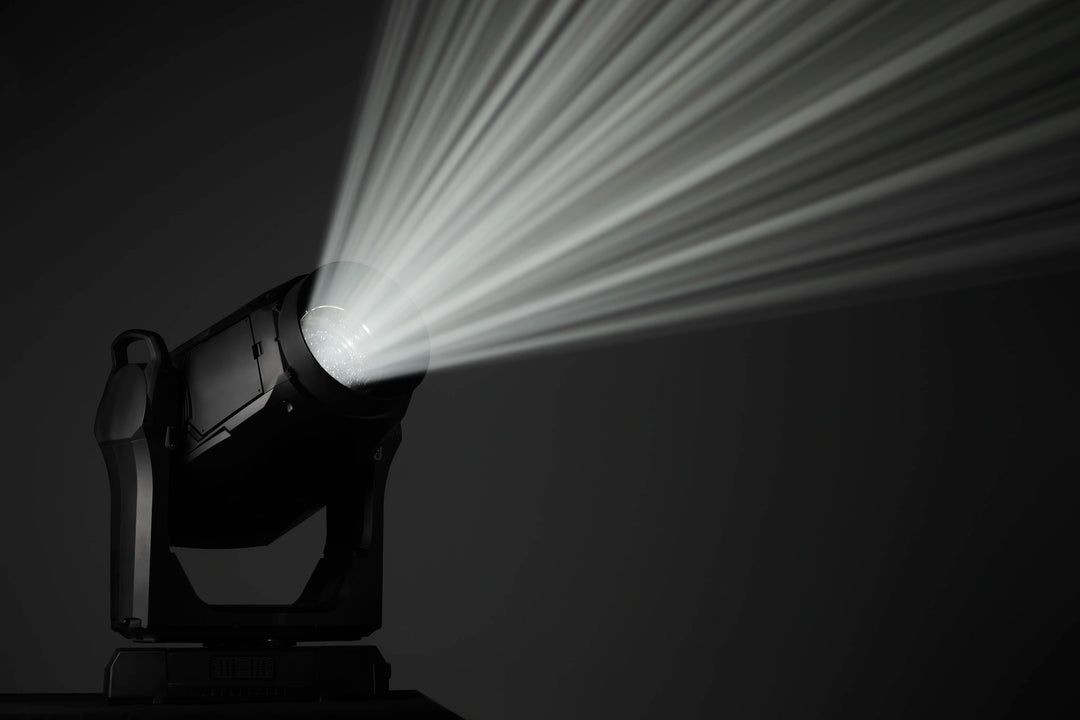

The combination of MAC Viper XIP’s powerful lumen output and innovative patent-pending XIP water and dust ingress protection make it not only ideal for a wide range of temporary, year-round outdoor applications*, but also ensures exceptionally low-noise levels for indoor use, similar to the whisper-silent Martin MAC Encore. Featuring Martin Professional’s proprietary tailor-made light engine, the MAC Viper XIP unleashes an impressive 5° narrow, high-definition, and high-contrast beam, ensuring unprecedented lumen maintenance over the zoom range.
MAC Viper XIP’s 28,000 lumens outperforms much larger products on the market due to its consistent, unwavering output. Its superior 5800 Kelvin color temperature ensures optimal illumination for artists and scenery, with the white point precisely on the black body curve without any green or magenta shift to ensure a crisp white point that naturally enhances illuminated objects.

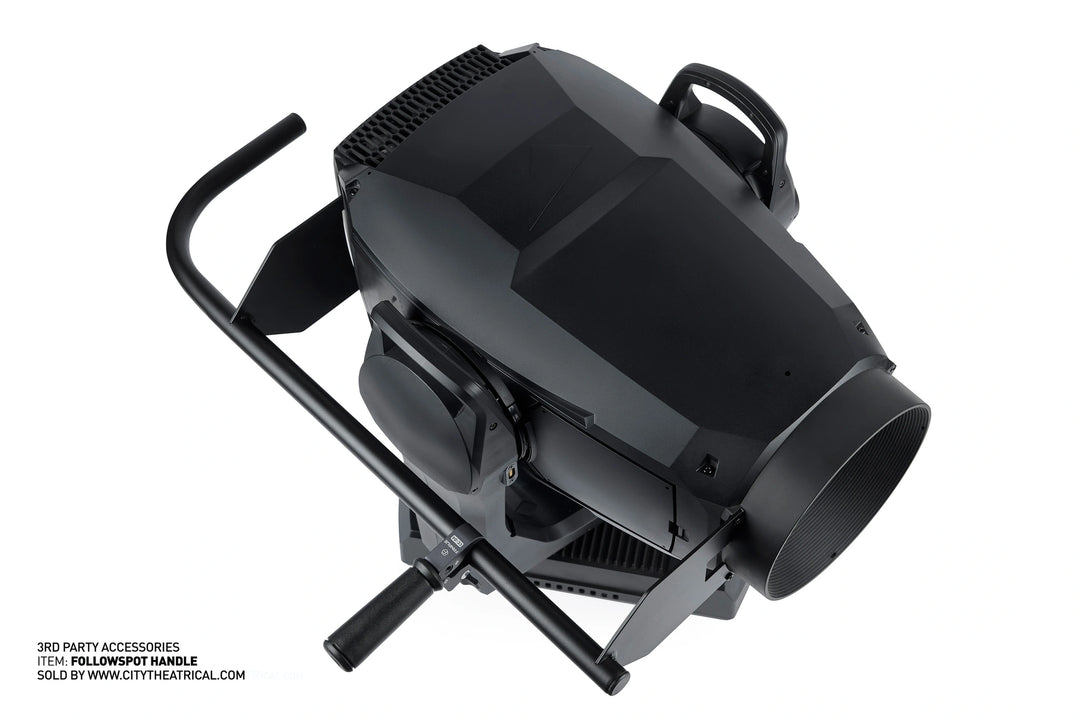

High-performance engineering catapults Martin’s latest moving head to the top of its class with precision motor control to deliver unmatched pan & tilt speeds and nimble response times - key for followspot systems and optimal performance. MAC Viper XIP’s color mixing, zoom speeds, and ratio between high-quality output, low-noise operation, and low-weight and size make it a truly versatile workhorse. It also features high-resolution, low-level dimming, and incorporates light recycling with gobos, enabling 25% additional output when inserting gobos for increased performance and efficiency. The MAC Viper XIP is not only advancing moving head technology, its propelling fixture innovation.
Adding to its feature-rich offering, MAC Viper XIP leverages innovative onboard NFC technology to empower quick and streamlined setup via the forthcoming, dedicated Martin app. It also ensures simplified connectivity among the most popular control protocols, including DMX, Wireless DMX via plug in module, Art-Net, sACN and Martin P3 Control (with fail-safe bypass).

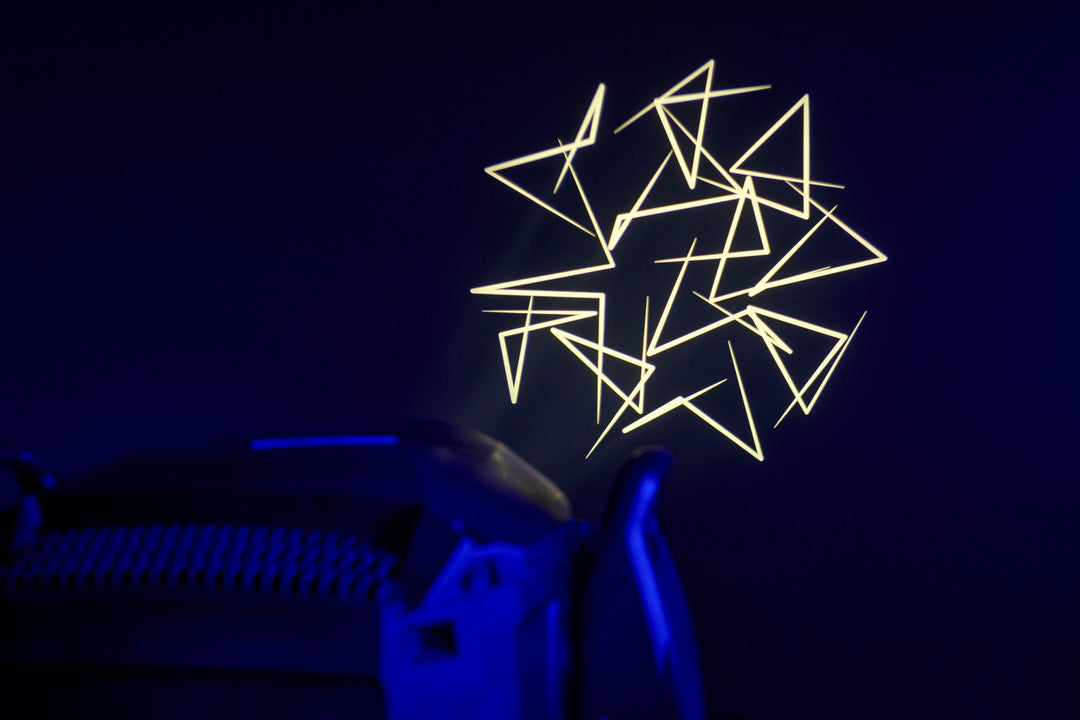

The newly designed optical system elevates the customer experience to another level with a high-resolution projection system that offers unmatched gobo projection sharpness. Uniquely high-contrast levels paired with brilliant and crisp lens designs ensure incomparable razor-sharp mid-air effects.

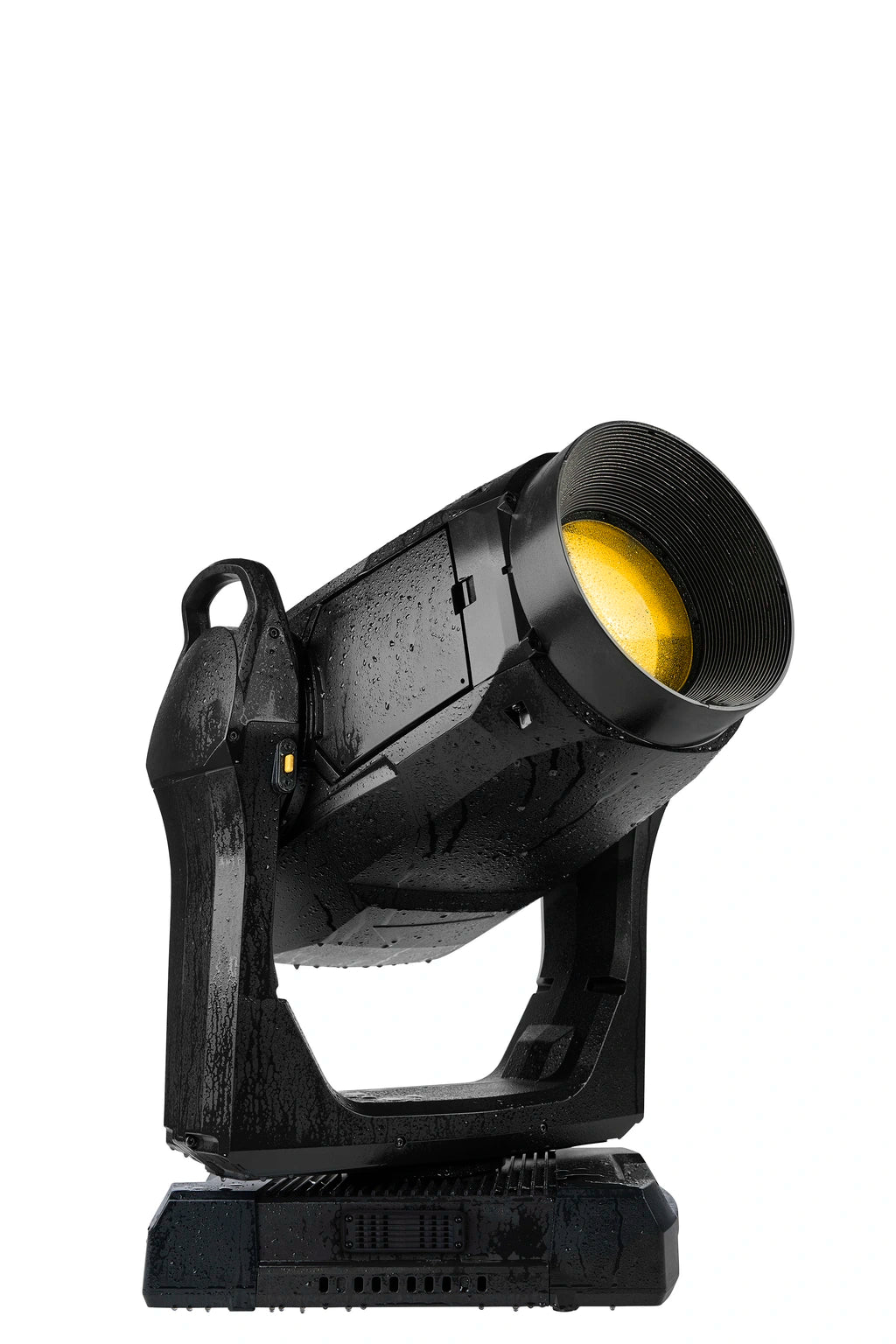

With its uncompromising package of high-output optical performance, XIP smart weatherproofing technology, premium feature-set, low-noise, smaller footprint, and ease of serviceability; MAC Viper XIP dominates the mid- to large-moving head category. From concert stages to TV studios and EDM festivals to opera houses, the world’s top designers, specifiers, and rental companies can invest in the confidence and return on investment that only the MAC Viper lineup can deliver. And this Viper delivers indoors or out, all year long, in any kind of weather. MAC Viper XIP – the LEGEND strikes again.
Width (across yoke): 479 mm (18.9 in.)
Width (base): 429 mm (16.9 in.)
Height (head straight up): 758 mm (29.8 in.)
Height (maximum): 776 mm (30.6 in.)
Length (head): 595 mm (23.4 in.)
Depth (base): 285 mm (11.2 in.)
Minimum center-to-center distance in side-by-side installation: 720 mm (28 in.)
Weight: 37.0 kg (81.5 lbs.)
Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Dimming options: Choice of four dimming curves
Color Mixing: CMY, independently variable 0 - 100%
Physical Color Temperature Control: Variable 5,800 – 2,850 K
Virtual Color Temperature Control: Variable 2,000 – 12,850 K
Virtual Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Color Wheel: 5 dichroic filters (incl. Spectral Enhancement Filter) + open, indexing, shake, continuous wheel rotation & random color
Rotating Gobo Wheel 1: 7 interchangeable gobos + open, indexing, shake, continuous rotation, continuous wheel rotation & random gobo
Rotating Gobo Wheel 2: 7 interchangeable gobos + open, indexing, shake, continuous rotation, continuous wheel rotation & random gobo
Gobo Color Temperature Correction: Automatic
Animation Wheel: Interchangeable animation wheel, indexing, shake, bounce, continuous rotation & variable wheel insertion angle
Light Frost: Variable 0 - 100%
Heavy Frost: Variable 0 - 100%
Prism: 4 Facet, indexing, shake & continuous rotation
Iris: Variable 0 - 100%, opening and closing pulse effects
Zoom: Motorized with 1:9 zoom ratio
Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity, including focus tracking
Framing: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100%
Pan: Motorized 540°
Tilt: Motorized 268°
P3 Mix: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
PixelMapping: Individual control of each of the 6 LED Segments
Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
LED Frequency control: Variable LED PWM control
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3 (additional protocols, incl. wireless, available via Universal Connect Module)
Protocol Detection: Automatic
DMX Modes: Basic, Extended & Ludicrous
DMX Channels: 54, 64 & 70
Multi-Universe Overflow: Yes, in all DMX Modes
16-bit Controllable Parameters: Dimming, Color Mixing, CTO, Gobo Indexing and Rotation, Animation Wheel Indexing and Rotation, Prism Indexing and Rotation, Iris, Zoom, Focus, Framing Insertion and Angle, Framing Rotation, Pan and Tilt
Setting and Addressing: Display Menu, NFC, RDM, RDM over Art-Net or Martin P3

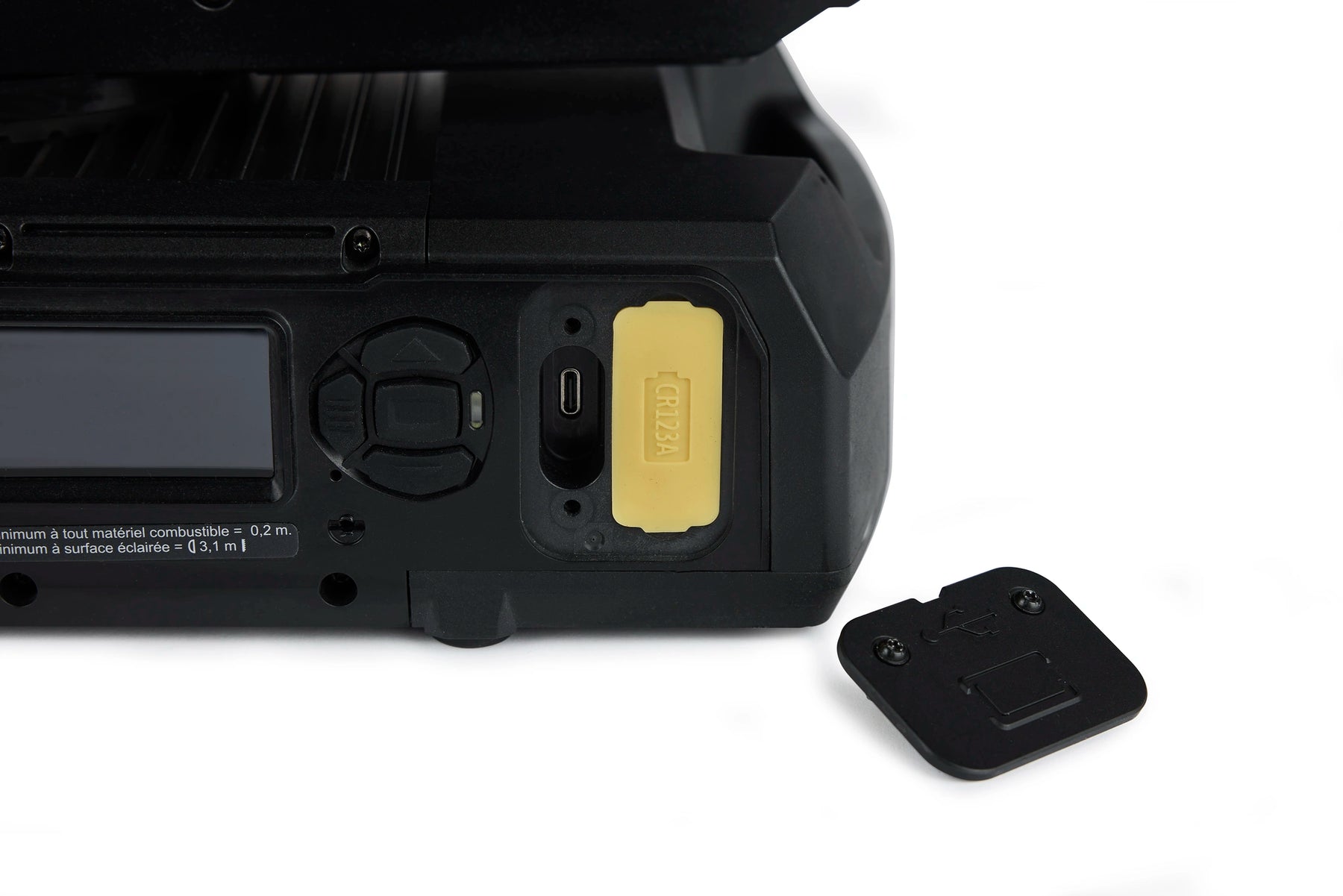

Local User Interface: Backlit LCD Display with battery-powered operation and integrated NFC antenna
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2018
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
DMX/RDM Daisy-Chain Limit: 32 fixtures
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Ethernet Daisy-Chain Limit Recommendation: 50 fixtures
Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller
Front Lens Diameter: 150 mm (5.9 in.)
Zoom Range: 1:9
Full Zoom Range at Tenth Peak (Field Angle): 5.7° - 54.0°
Light Source: 55 x 22 W White LED in a custom Martin engine
Max. Total LED Engine Power: 760 W
Minimum LED lifetime: > 50.000 hours (to > 80% luminous output) / > 20.000 hours (to > 90% luminous output)*
*Figure obtained under manufacturer's test conditions
Light Engine Luminous Output: 56,000 lumens
Without Spectral Enhancement Filter
Fixture Luminous Output Wide: 28,000 lumens
Fixture Luminous Output Narrow: 24,700 lumens
Peak Luminous Intensity Narrow: 2,500,000 cd
CCT: 5,800 K (+/- 250 K)
CRI (Color Rendering Index): 68 (+/- 3)
CQS (Color Quality Scale): 65 (+/- 3)
TM-30 Rf (IES TM-30-15 Fidelity Index): 66 (+/- 3)
TM-30 Rg (IES TM-30-15 Gamut Index): 94 (+/- 3)
TLCI (Television Lighting Consistency Index): 44 (+/- 3)
With Spectral Enhancement Filter
Fixture Luminous Output Wide: 18,700 lumens
Fixture Luminous Output Narrow: 16,600 lumens
Peak Luminous Intensity Narrow: 1,700,000 cd
CCT: 5,800 K (+/- 250 K)
CRI (Color Rendering Index): 90 (+/- 3)
CQS (Color Quality Scale): 83 (+/- 3)
TM-30 Rf (IES TM-30-15 Fidelity Index): 78 (+/- 3)
TM-30 Rg (IES TM-30-15 Gamut Index): 107 (+/- 3)
TLCI (Television Lighting Consistency Index): 68 (+/- 3)
LED Refresh Rate: 2,400 Hz with fine adjustment (+/- 2%) and Hybrid mode (DMX controllable)
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 5800 K white

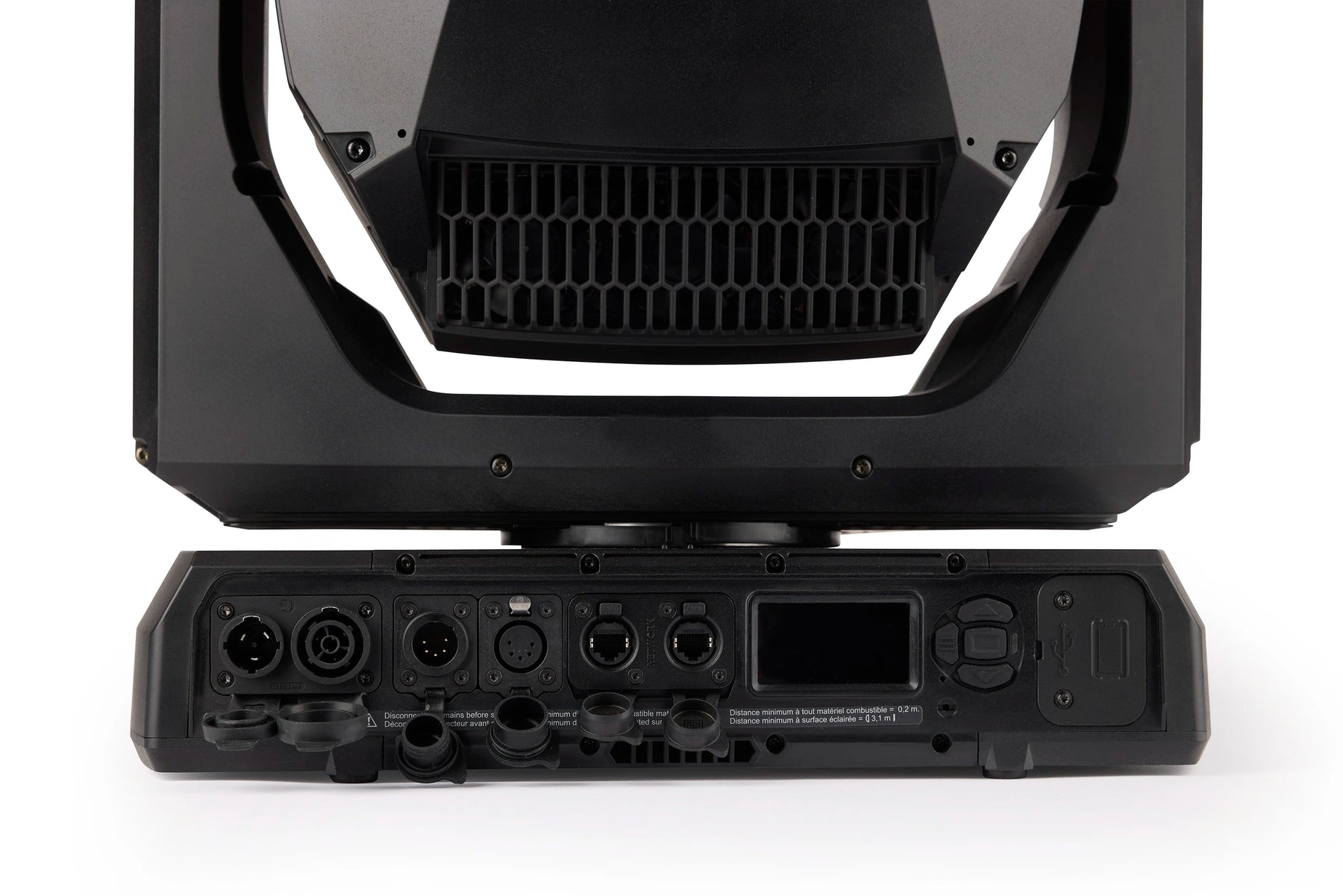

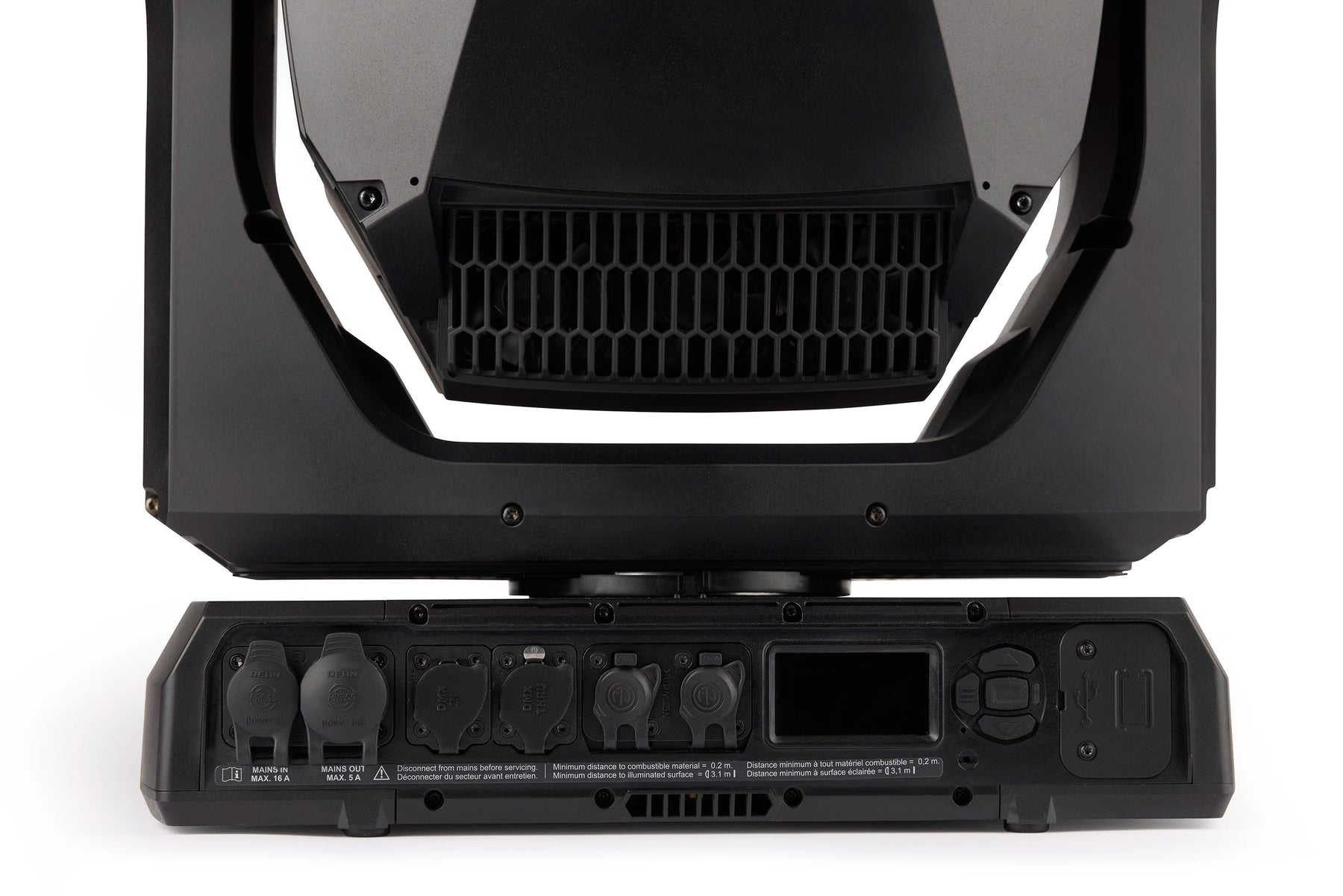

AC mains power in/thru: Neutrik Rean powerCON TRUE1 TOP
DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
Ethernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON TOP
Firmware from flash memory: USB 2.0 type C port
Accessory Plug-In: Universal Connect Module Slot
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
Typical earth-leakage current: 0.7 mA
Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
Max current draw: 11.0 A @ 100 V / 120 V , 5.2 A @ 208 V , 4.6 A @ 230 V / 240 V
Typical current draw: 9.5 A @ 100 V , 7.8 A @ 120 V , 4.4 A @ 208 V , 4.0 A @ 230 V , 3.9 A @ 240 V *
Power Consumption
Maximum: 1040 W
Typical: 945 W *
Idle: 68 W *
Hibernation: 6 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
