OPTO ISOLATOR 5-OUT RDM (SWISSON)

OPTO ISOLATOR 5-OUT RDM (SWISSON)

Rental Price  Regular price$80.00
/
Prices Are Subject To Change Without Notice

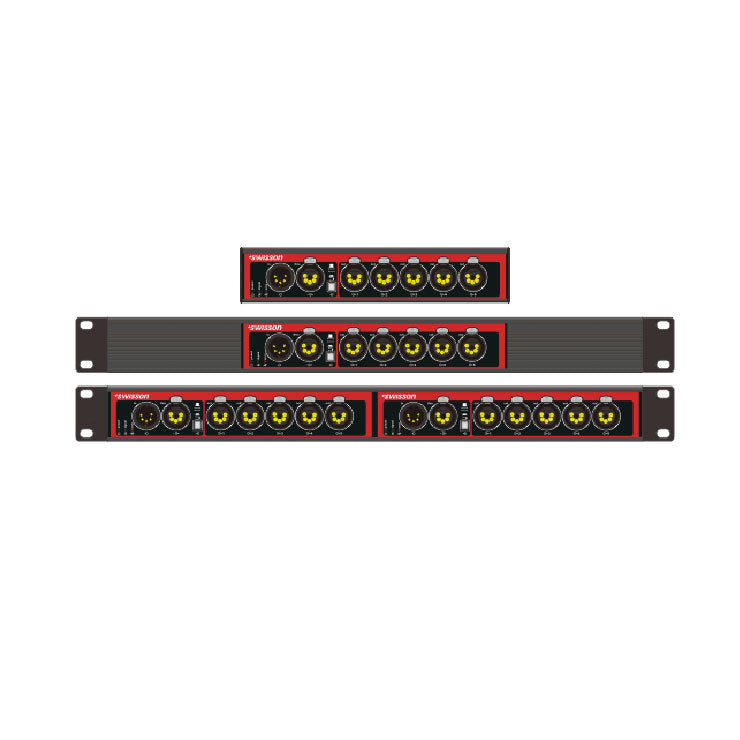

The RDM & DMX Opto-Splitter 5 Pin XLR In & Thru – 3 Pin Out XLR Box is ideal for limited space and is equipped with one 5 Pin XLR input, one 5 Pin XLR through, and five 3 Pin XLR outputs.

The RDM & DMX Opto-Splitter 5 Pin XLR In & Thru – 3 Pin Out XLR Single Rack includes hardware for mounting onto racks, one 5 Pin XLR input, one 5 Pin XLR through, and five 3 Pin XLR outputs.

The RDM & DMX Opto-Splitter 5 Pin XLR In & Thru – 3 Pin Out XLR Double Rack includes flanges for easy mounting, two 5 Pin XLR inputs, two 5 Pin XLR through ports, and ten 3 Pin XLR outputs.

  • R Switch to toggle between RDM&DMX compatibility or DMX only mode
  • LED Display
  • ETL/cETL/CE certified
  • Optical isolation prevents signal disturbances
  • Isolation between input and outputs as well as full isolation between each output
  • Simplify connections and reduce installation and cable cost
  • Easy detection of disturbances by intelligent DMX protocol supervisor
  • Clean and clear amplification of DMX signals
  • DMX line can be terminated by pressing a button
  • Extend DMX lines infinitely with the splitter
  • Strong Power Supply worldwide 5VAC – 276VAC
  • Input (1 universe) 1pcs
  • Through (1 universe) 1pcs
  • Outputs 5 pcs
  • Box version, M10 thread for a clamp and an eye bolt for safety line
  • Dimensions Rack: 19″, 1 Unit, 111 mm, Box: 220x111x44mm
